DC to DC Dual Battery System Smart Hub Universal Fitment Dual Voltage
A DC-DC charger is a smart way to ensure your auxiliary battery reaches its maximum charge capacity in a safe, fast and regulated way. What can also be integral to your dual battery setup is a DC to DC smart hub, which comes with dual voltage meters to view the real-time voltage status of the main battery & the auxiliary battery for your convenience. Fitting most DC-DC chargers, this smart hub by ATEM POWER features marks for all terminals & connectors on the top panel and color coded Anderson plugs for easy connection. As an added bonus, this compact and portable smart hub will be hassle free with the explicit user manual for dual battery system wiring diagrams with different kinds of DC-DC chargers. If you enjoy the convenience of dual voltage meters and are trying to simplify cable management for your dual battery system, this sturdy and durable smart hub will be a great pick for you and allow you to optimize the charging process for your auxiliary battery using your DC-DC charger.
Dual Voltage Meters: This smart hub comes with dual voltage meters to view the real-time voltage status of the main battery and the auxiliary battery.
Cable Management: If you want something to help you manage cables for your dual battery system, then this smart hub comes in rather handy.
Universal Fitment: This smart hub fits most DC-DC chargers, including ATEM POWER, CTEK, RENOGY, REDARC and Projecta.
Multi Battery Selection: This dual battery system smart hub by ATEM POWER is compatible with wet, calcium, AGM, Gel and LiFePo4 batteries.
Easy Installation: This compact and portable DC to DC smart hub can be easily installed anywhere in the vehicle and is easy to remove when changing vehicle.

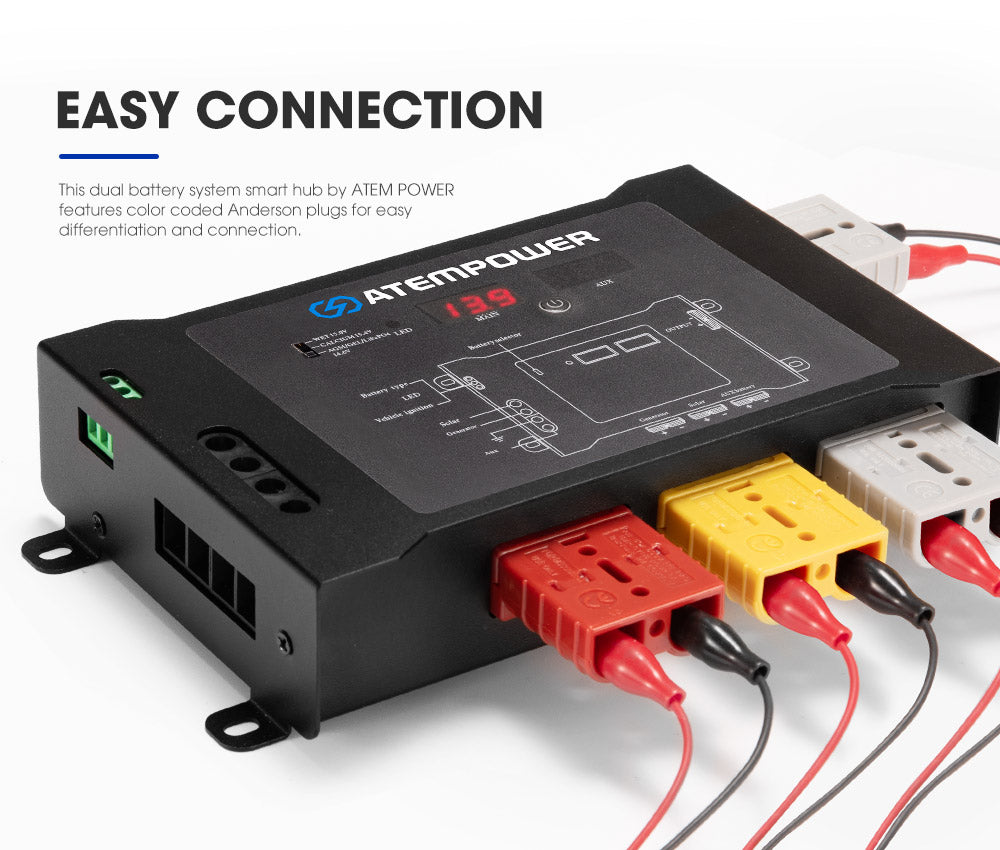

Easy Connection: This dual battery system smart hub by ATEM POWER features color coded Anderson plugs for easy differentiation and connection.
Durable Construction: Sturdy steel housing is built to resist harsh Australian conditions and quality connectors are built for long last durability.
User Friendly Design: This smart hub features an LED light that is designed to show the real-time status of power.

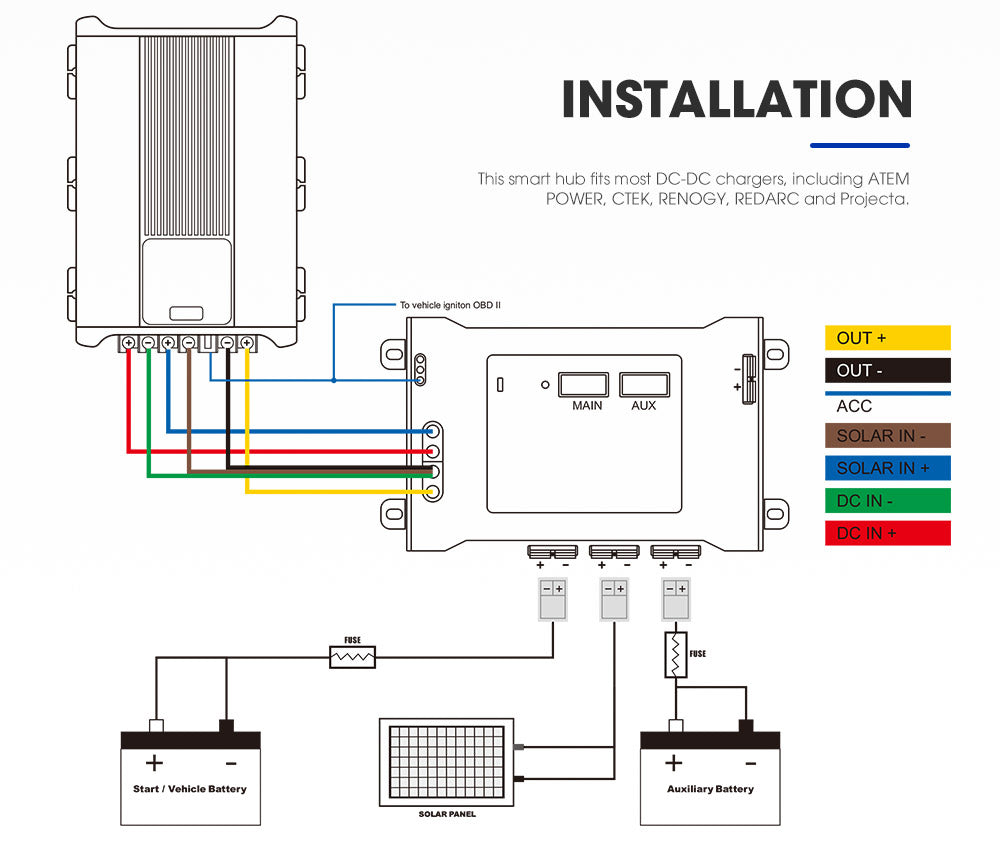

Explicit Instructions: An explicit user manual is included for dual battery system wiring diagrams with different kinds of DC-DC chargers.
NOTE: Please be aware that this is NOT a charger but a hub.
Manufacturer Number: VABGHUB-AP
Brand: ATEM POWER
Housing Material: Steel
Amperage Rating: 50A
Compatible Batteries: Wet, Calcium, AGM, Gel, LiFePo4

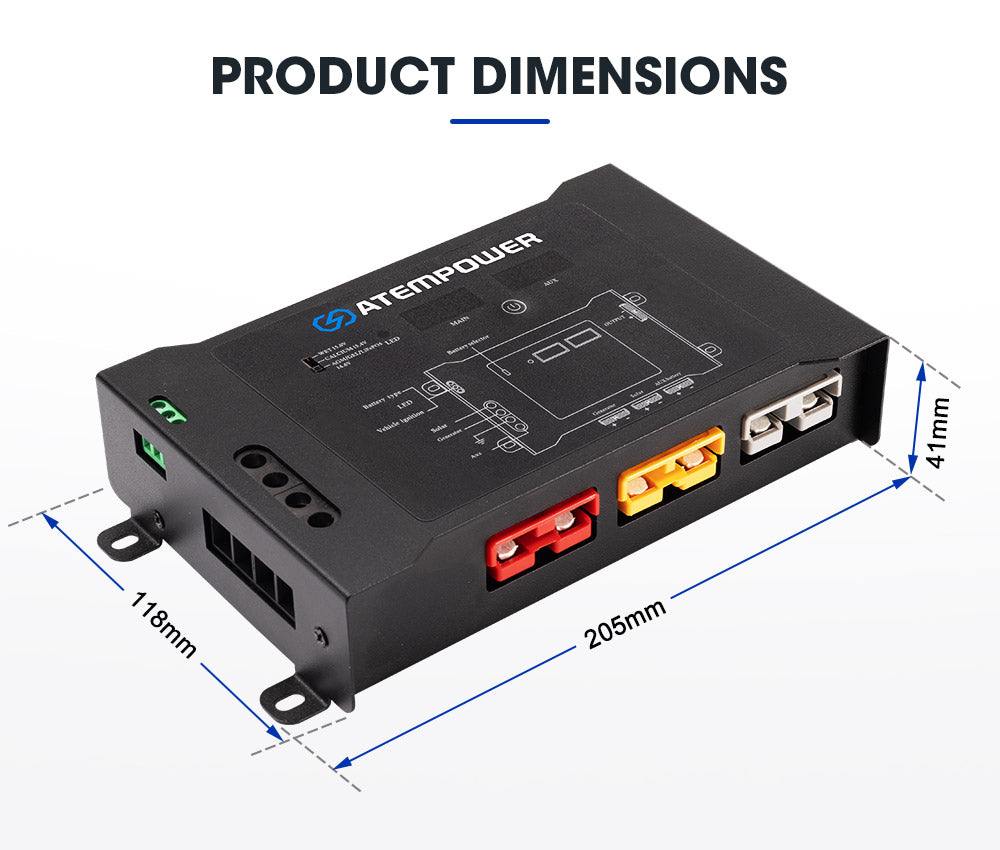

Product Dimension: 20.5cm x 11.8cm x 4.1cm
Package Dimension: 24cm x 15.5cm x 7cm
Gross Weight: 1kg

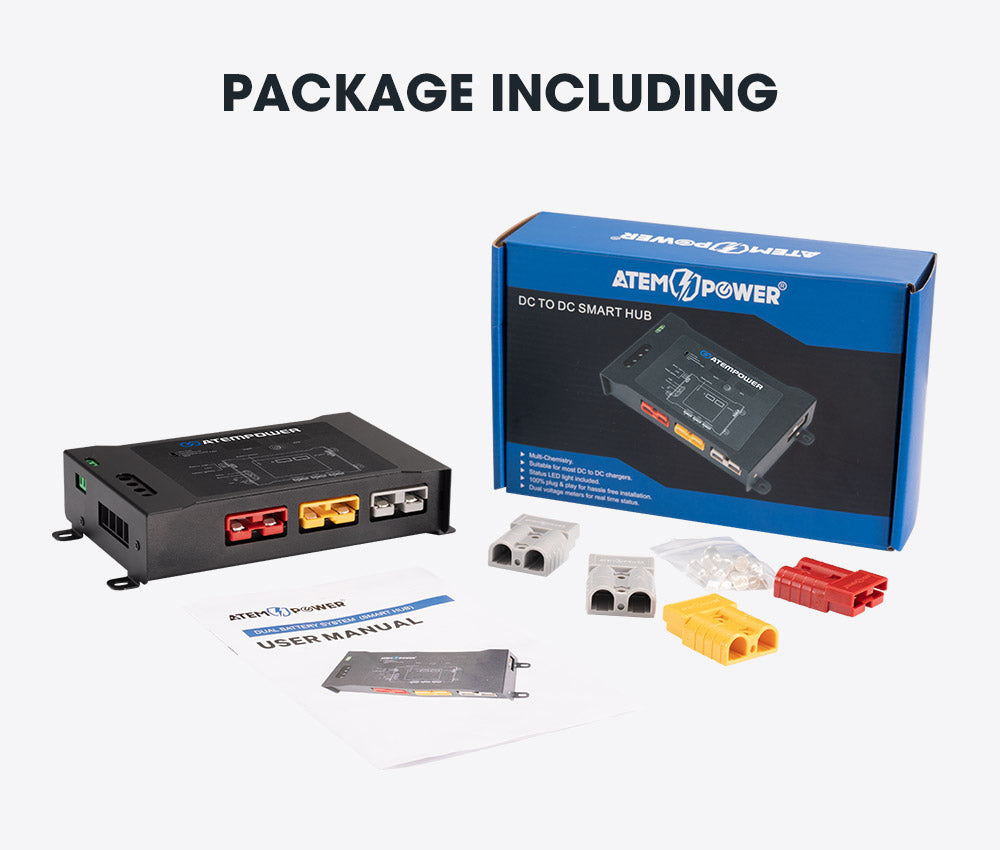

1 x ATEM POWER DC to DC Smart Hub
1 x Installation Manual
2 x Grey Anderson Plugs
1 x Yellow Anderson Plug for Solar
1 x Red Anderson Plug for Alternator
1 Year Warranty
