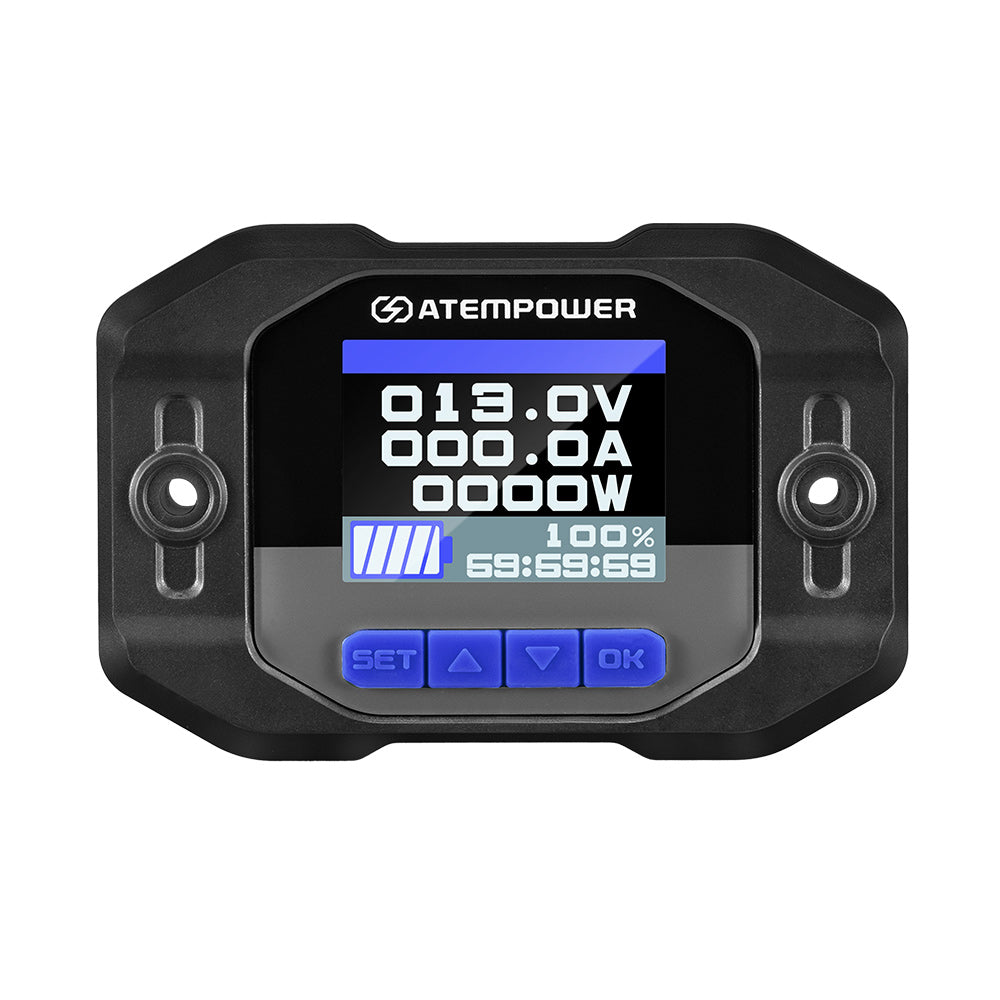

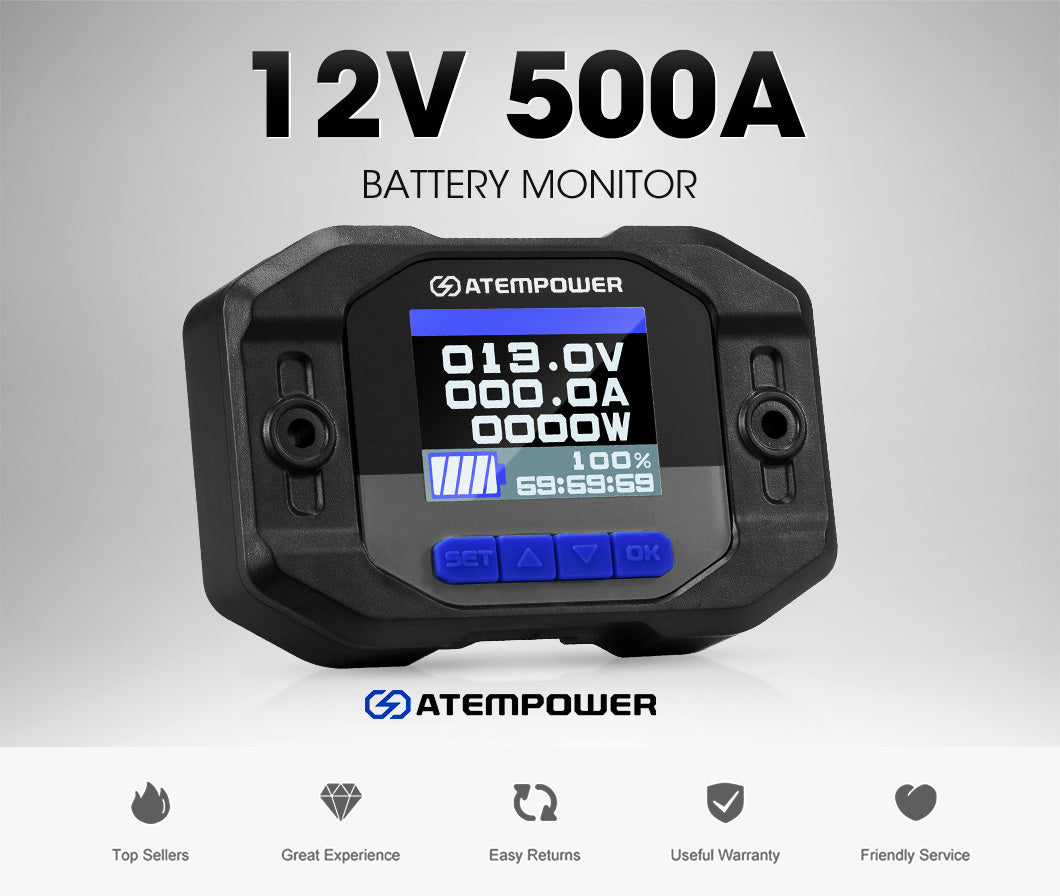

Atem Power Battery Monitor With Shunt High Low Voltage Wire 12V Battery 500A

SKU: AP-CM-500A-SUN
Sale price$99.95
In Stock! Ship in 1 business day

30 Days Return

1 Year Warranty

100% Secure Transaction

FREE SHIPPING ZONE

We provide free delivery for most metropolitan areas in Australia, but there may be additional delivery costs associated to some areas.

Description

A battery monitor is an essential tool that helps you keep track of how much power your battery has left. With an RV battery monitor, you can easily monitor the condition of your battery to prevent damage caused by over-discharging. Our battery monitor is suitable for 5~64V batteries and provides highly accurate data. Compared to voltage-based battery monitors, our shunt-type monitor is much more accurate as it measures the actual energy flowing into and out of the battery. With the ATEM POWER car battery monitor, you can monitor real-time voltage, current draw, watts, charge level, and remaining time on its high-definition backlit LCD display. Whether you're on a road trip or using your RV as a permanent residence, our battery monitor with shunt ensures that you always have enough power for your needs. Investing in our 12V battery monitor with battery shunt is a smart choice for anyone who wants to keep their battery in top condition.
Features
  • 1% Accuracy Measurement: Our battery monitor with shunt is incredibly accurate, measuring the actual energy flowing into&out of your battery with a precision of 1%.

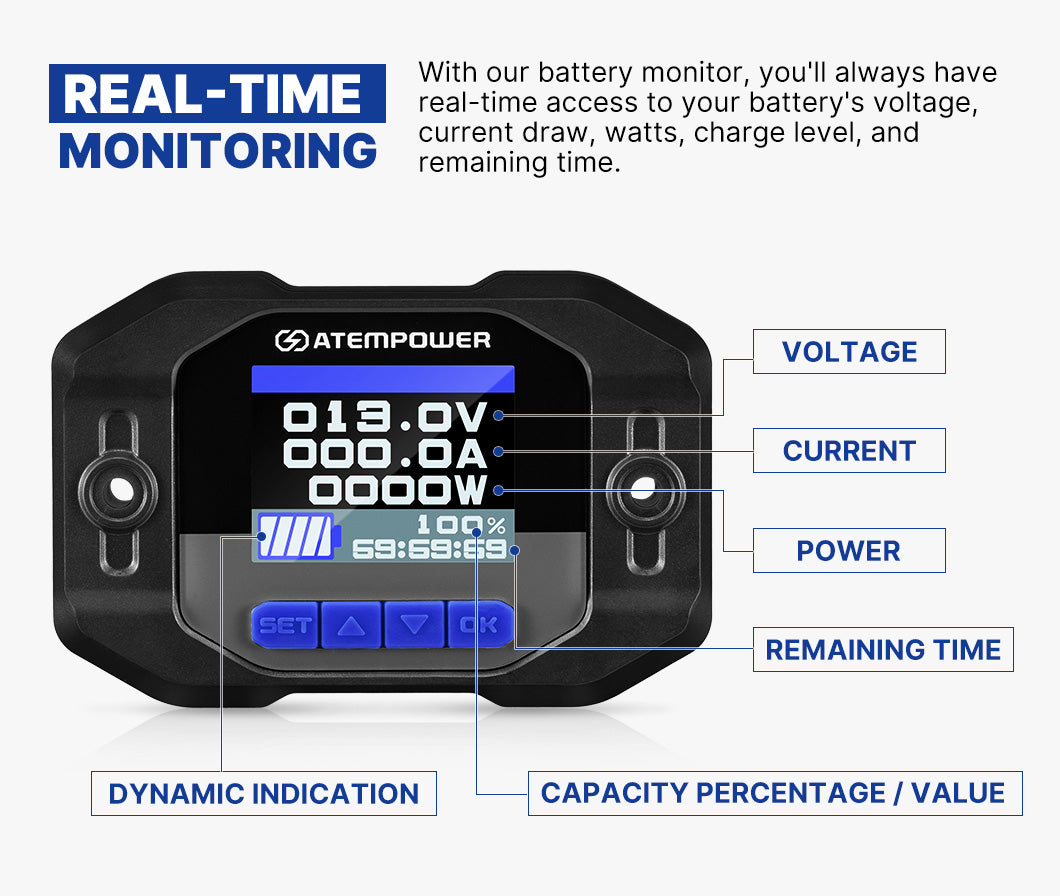

  • Real-Time Monitoring: With our battery monitor, you'll always have real-time access to your battery's voltage, current draw, watts, charge level, and remaining time.
  • Low Power Consumption: Our battery monitor draws very low standby power and keeps an eye on your battery without worrying about excessive power consumption.

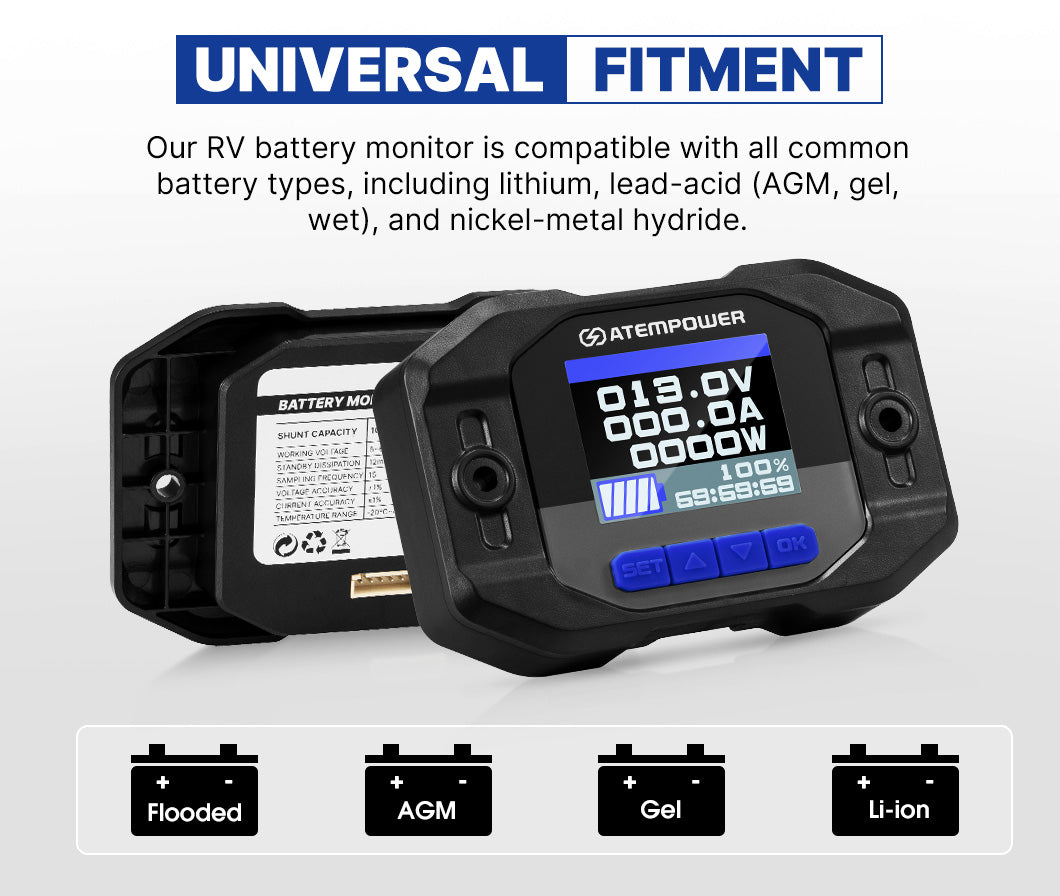

  • Universal Fitment: Our RV battery monitor is compatible with all common battery types, including lithium, lead-acid (AGM, gel, wet), and nickel-metal hydride.

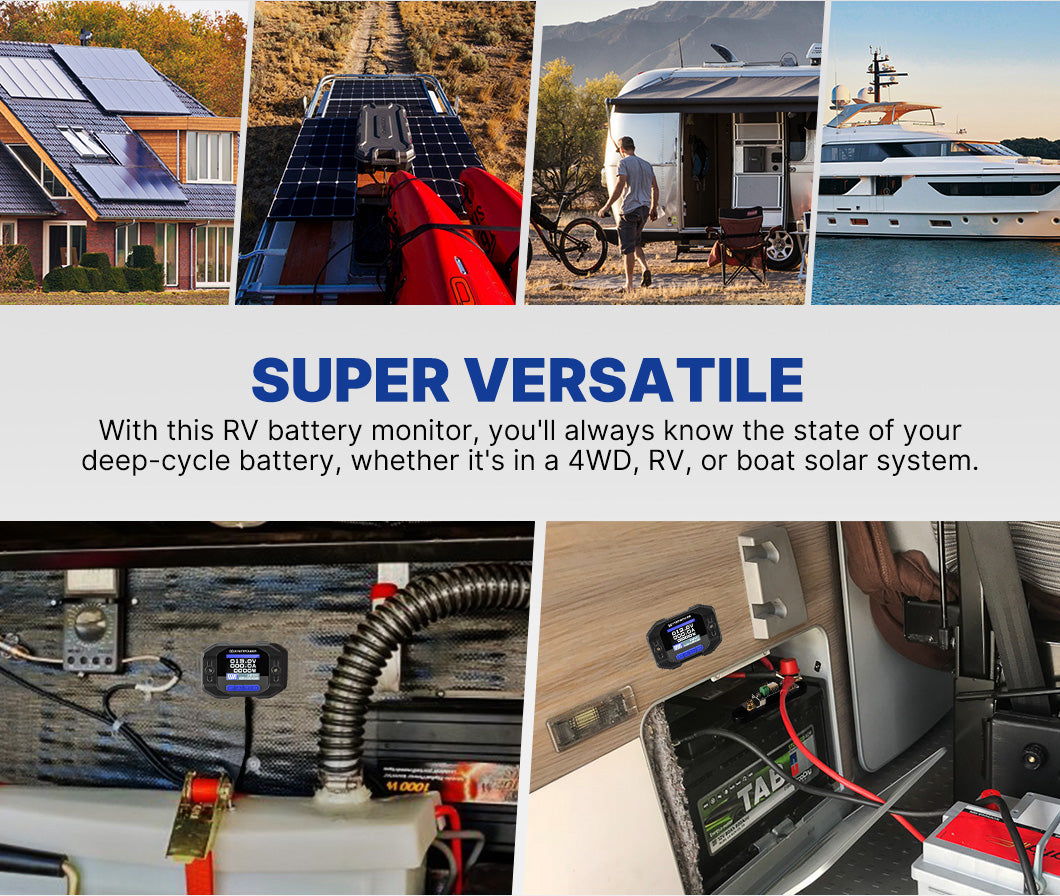

  • Super Versatile: With this RV battery monitor, you'll always know the state of your deep-cycle battery, whether it's in a 4WD, RV, or boat solar system.

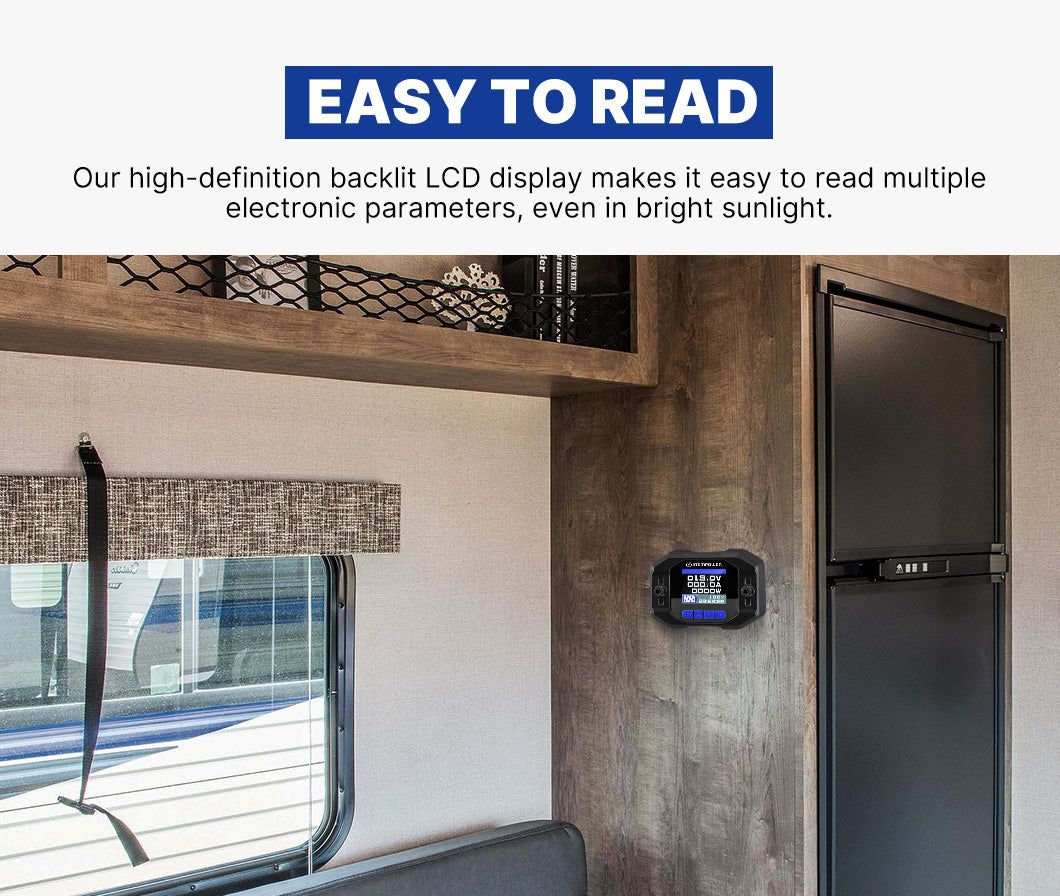

  • Easy to Read: Our high-definition backlit LCD display makes it easy to read multiple electronic parameters, even in bright sunlight.

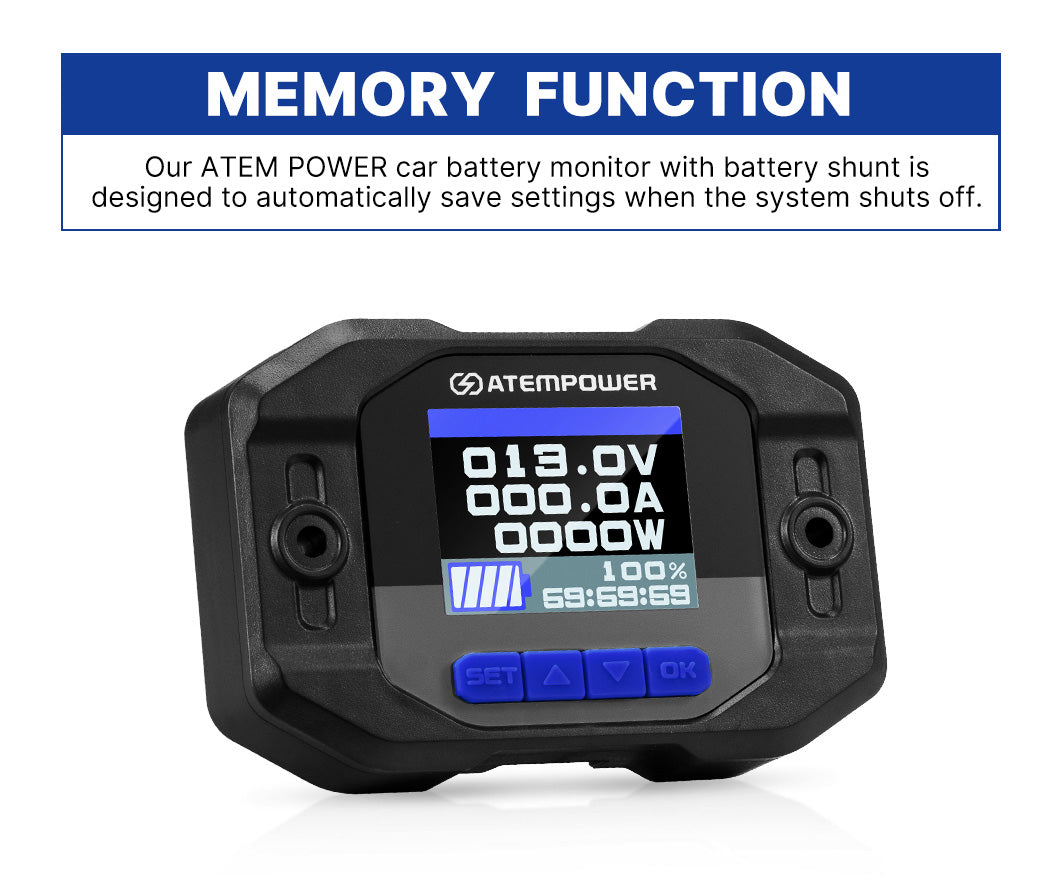

  • Memory Function: Our ATEM POWER car battery monitor with battery shunt is designed to automatically save settings when the system shuts off.

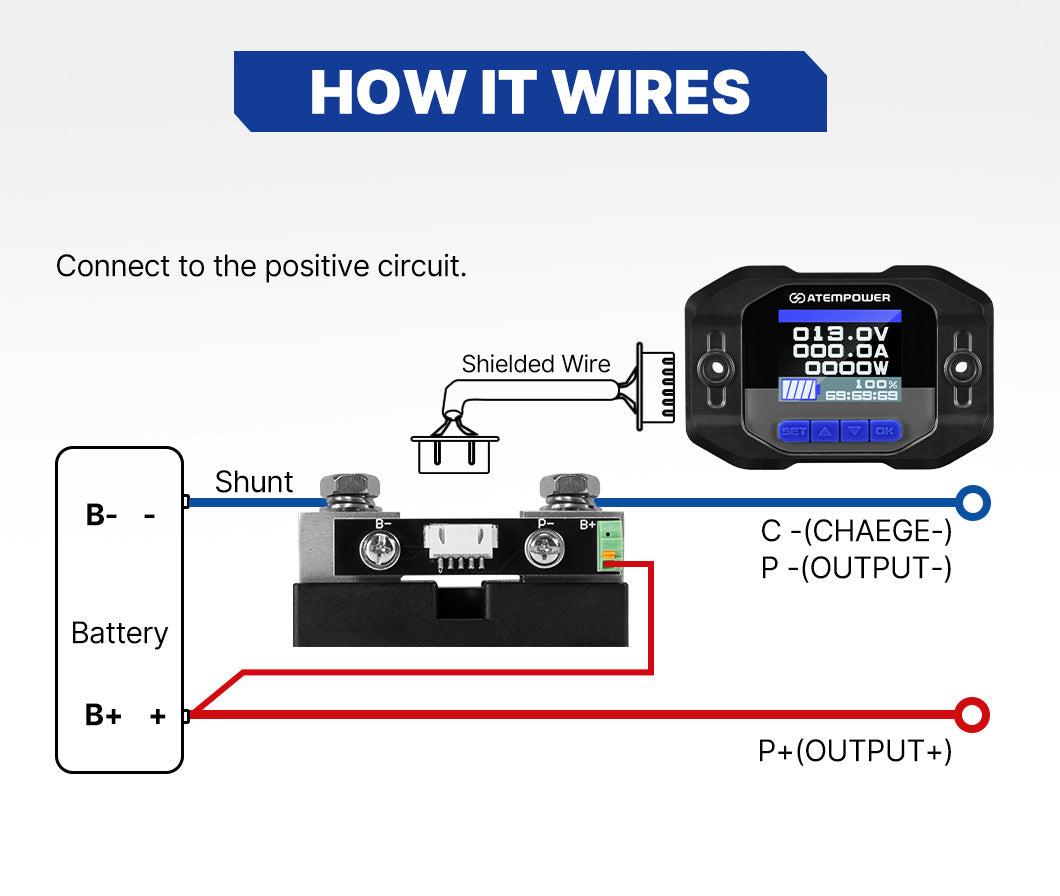

  • Hassle-Free Installation: We've included everything you need for easy installation, including a battery monitor, 500A shunt, shielded wire, B+ wire & mounting screws.
  • Dual Mounting Options: Our 12V battery monitor with battery shunt can be mounted either with the standard base or flush-mounted without the base.

GTIN
9356307011289

Note: Please do not use 'P.O. Box' as your mailing address

Specifications

Shunt Capacity:500A
Working Voltage:5~64V
Standby Dissipation:12mA (Backlight Off)
15mA (Backlight On)
Preset Capacity Value:1~999Ah
Max. Measured Current:Peak 600A≤1h, 1500A≤3s
Continuous 500A
Voltage Accuracy:±1%
Current Accuracy:±1%
Capacity Accuracy:±1%
Temperature Range:-20℃~45℃ (-4℉~113℉)
Weight (LCD Interface):107g (0.24lbs)

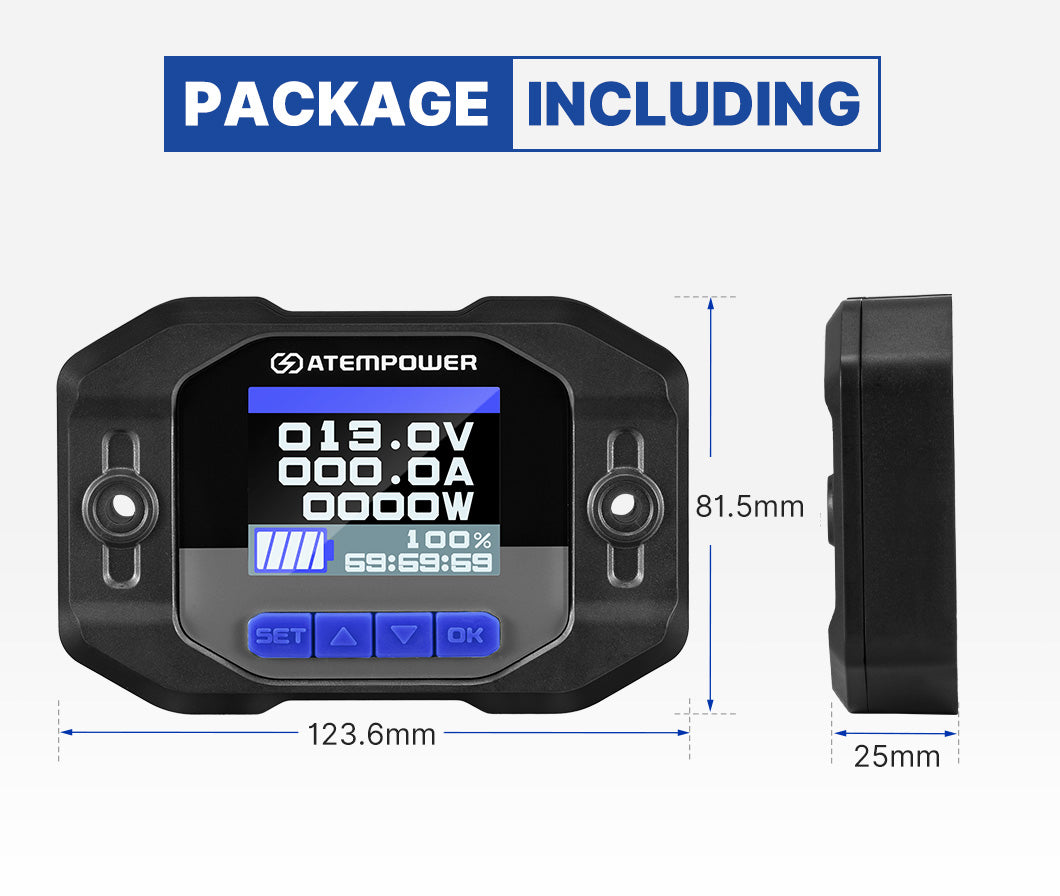

Size (LCD Interface):124mm(L) x 81.5mm(W) x 25mm(H)
Shielded Wire:3.0m
B+ Wire:0.5m
Package Size:22cm(L) x 13cm(W) x4.5cm(H)
Gross Weight:0.6kg

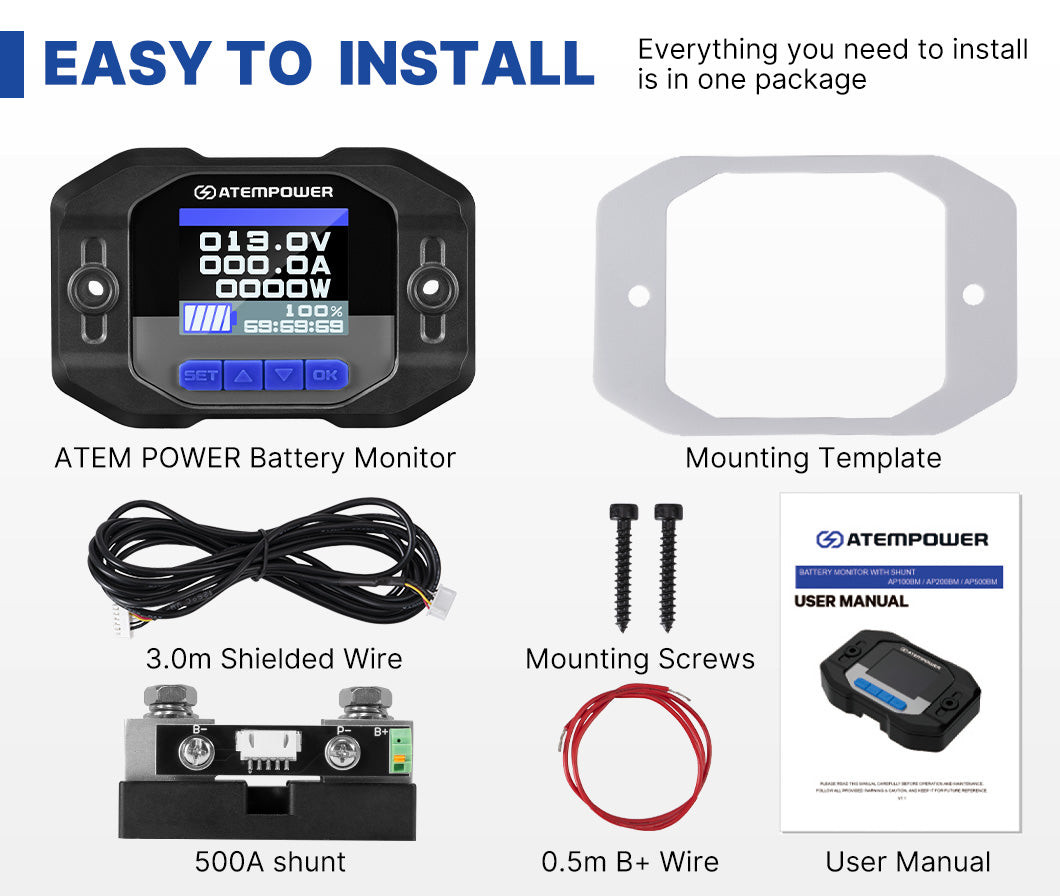

Package Includes

  • 1 x ATEM POWER Battery Monitor
  • 1 x 500A Shunt
  • 2 x Insulated Terminals
  • 1 x 3.0m Shielded Wire
  • 1 x 0.5m B+ Wire
  • Set of Mounting Kit
  • 1 x User Manual

Warranty

1 Year Warranty
