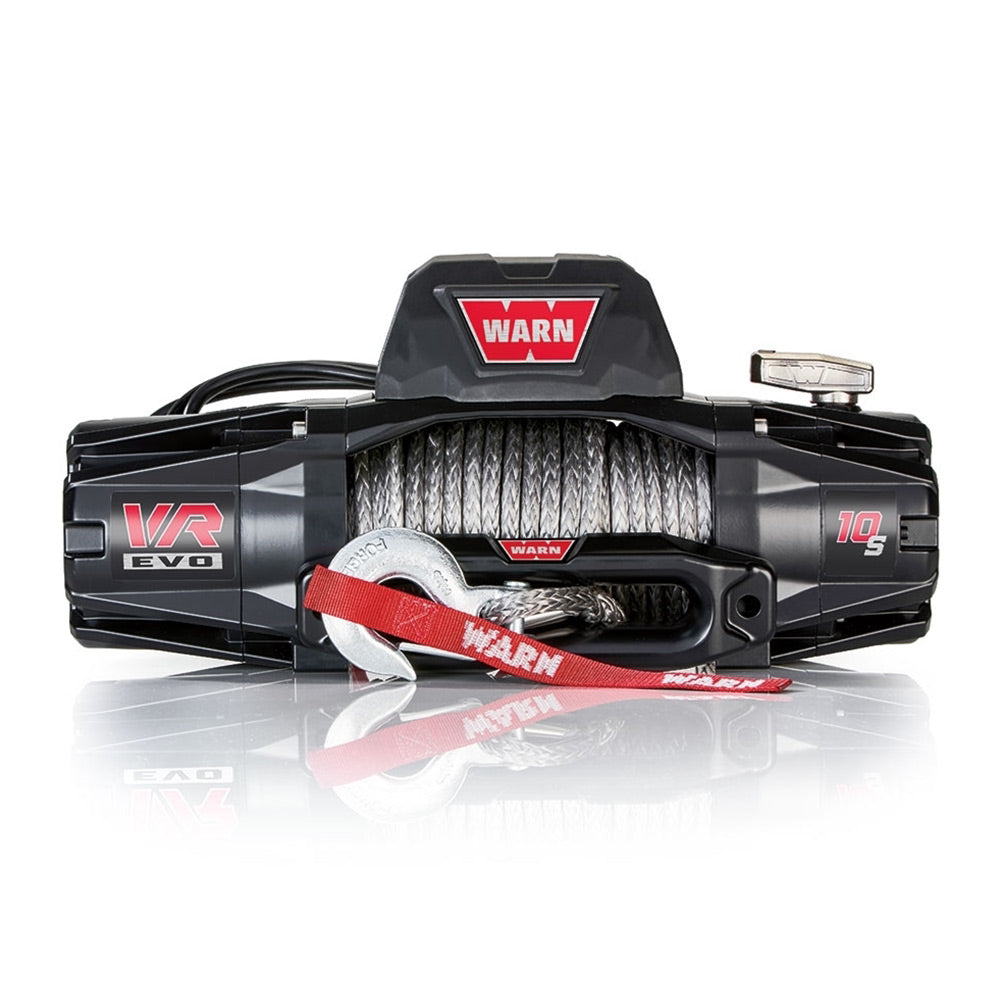

WARN VR EVO 10-S 12V WINCH - SYNTHETIC ROPE

WARN WINCHES Warn manufacture winches and recovery accessories for 4 Wheel Drives, ATV’s, Tow Trucks, Hoisting and Utility applications in DC and/or Hydraulic configurations. WARN is the most recognized and respected brand of vehicle self-recovery winches, electric and hydraulic powered light industrial winches, and the market leader in OEM powertrain disconnect systems. Founded in 1948, the company designs, manufactures and markets a full line of off-road equipment and accessories that enhance the performance of four-wheel-drive vehicles, ATVs and utility vehicles. The company's Industrial Division markets electric and hydraulic winches and hoists to commercial, industrial and severe duty customers. Warn also has a line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting.

FEATURES

A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw

IP68-rated waterproof winch construction keeps the elements out

High-performance Albright contactor delivers maximum reliability

Control packs can be relocated for low-profile installations

Durable, one-piece cast-aluminum tie-plate for added strength and durability

Two-in-one remote with wired AND wireless options for ease of use and versatility

Limited lifetime warranty for mechanical parts and 7 years on the electrical

Note:Your order will dispatched within 2-3 business days.

SPECIFICATIONS

Part number: EVO-10-S-103253

Dust & water rating: IP68

Fairlead: Hawse

Rated line Pull: 10000lb (4536kg) single line

Wireless Control: Pendant Wired & Wireless

Motor: Series Wound

Recommended battery: 650CA minimum for winching

Control: Pendant 3.5m

Battery leads: 25mm x 2m

Gear train: 3 Stage Planetary

Gear ratio: 218:1

Finish: Powder coated over primer

Weight: 25.1kgs

Clutch: Rotating ring gear

Bolt pattern: 254mm x 114.3mm

Brake: Spring Brake

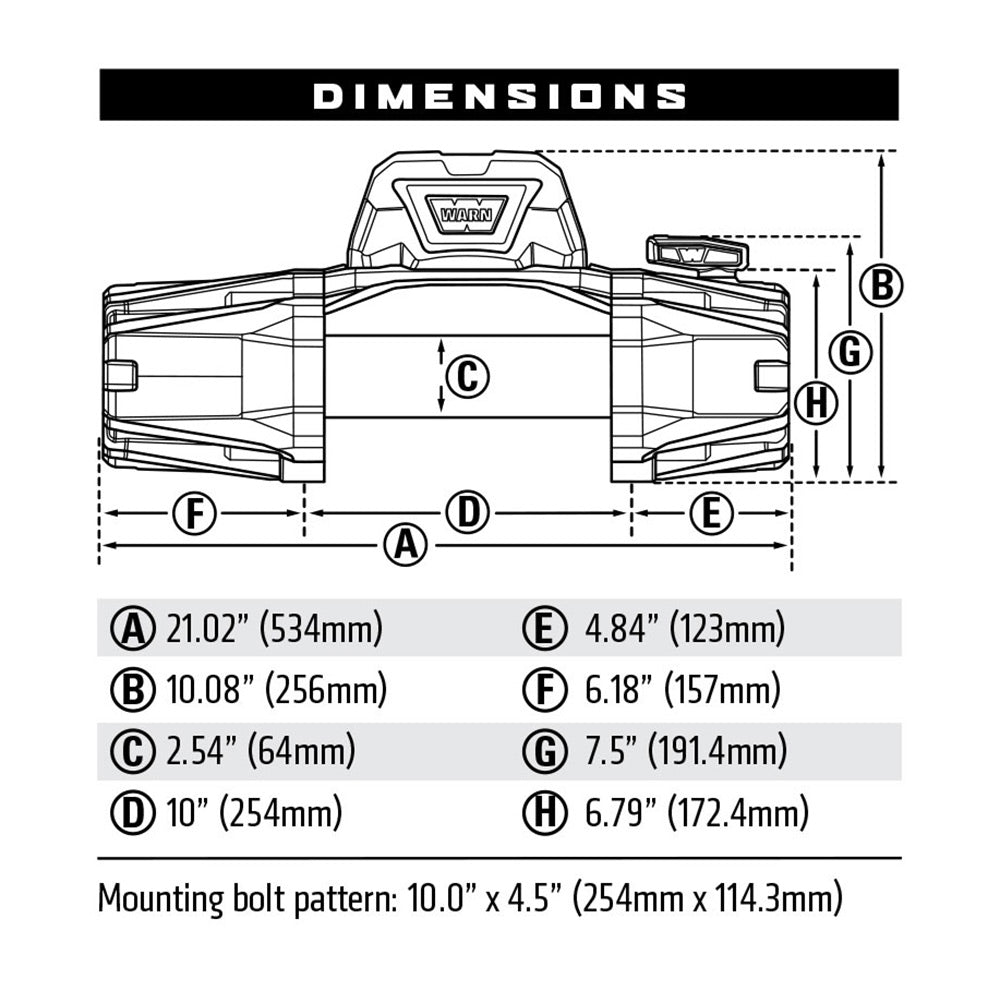

Overall dimensions (LxWxH): 534mm x160.5mm x 256mm

Drum size: 64mm x 230mm

Cable type: Synthetic Rope

Cable: 9.5mm x 27.4m

PACKAGE INCLUDES
1 x Electric Winch
1 Set Accessories
1 x User Manual

WARRANTY

Limited lifetime warranty (Geartrain), 7 year warranty (electrical)
