| Solar Panel: | |

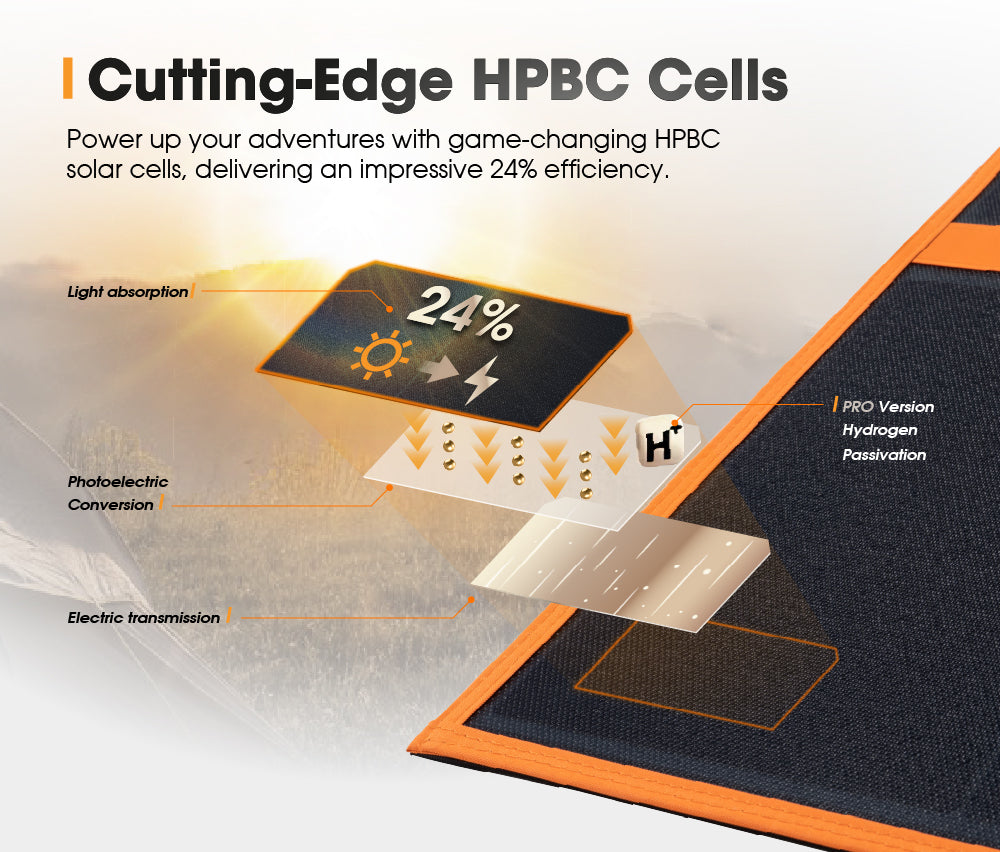

| Cell Type: | HPBC (Hybrid Passivated Back Contact) |

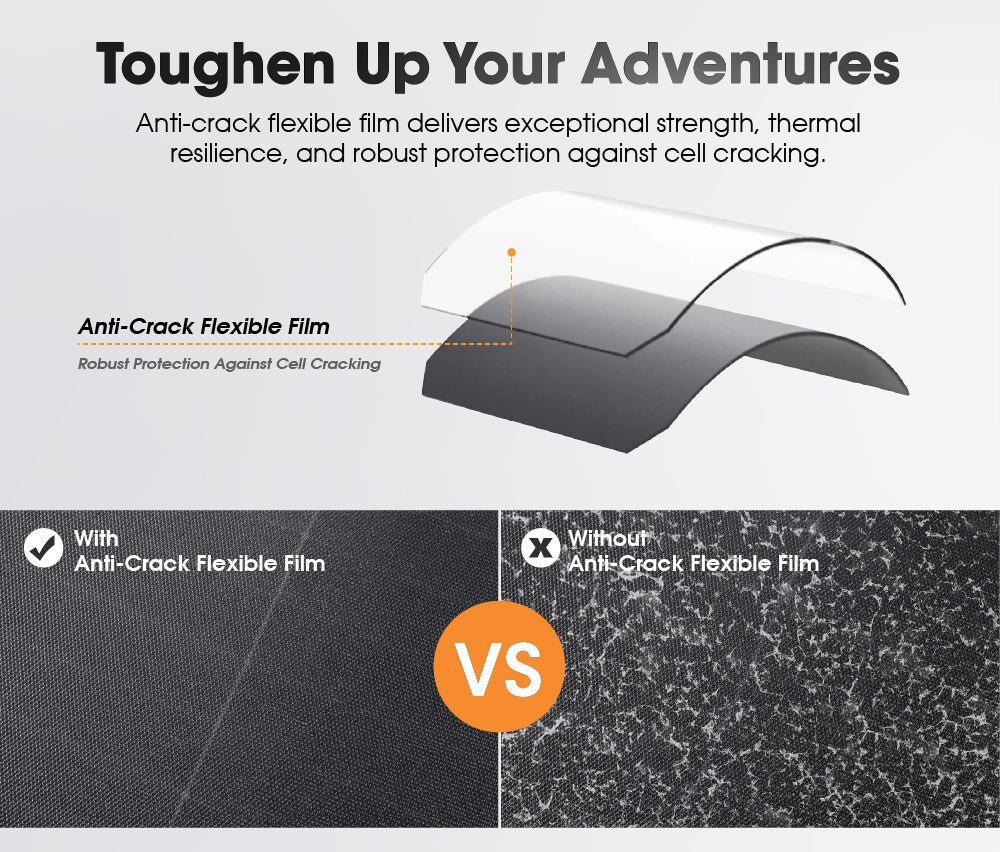

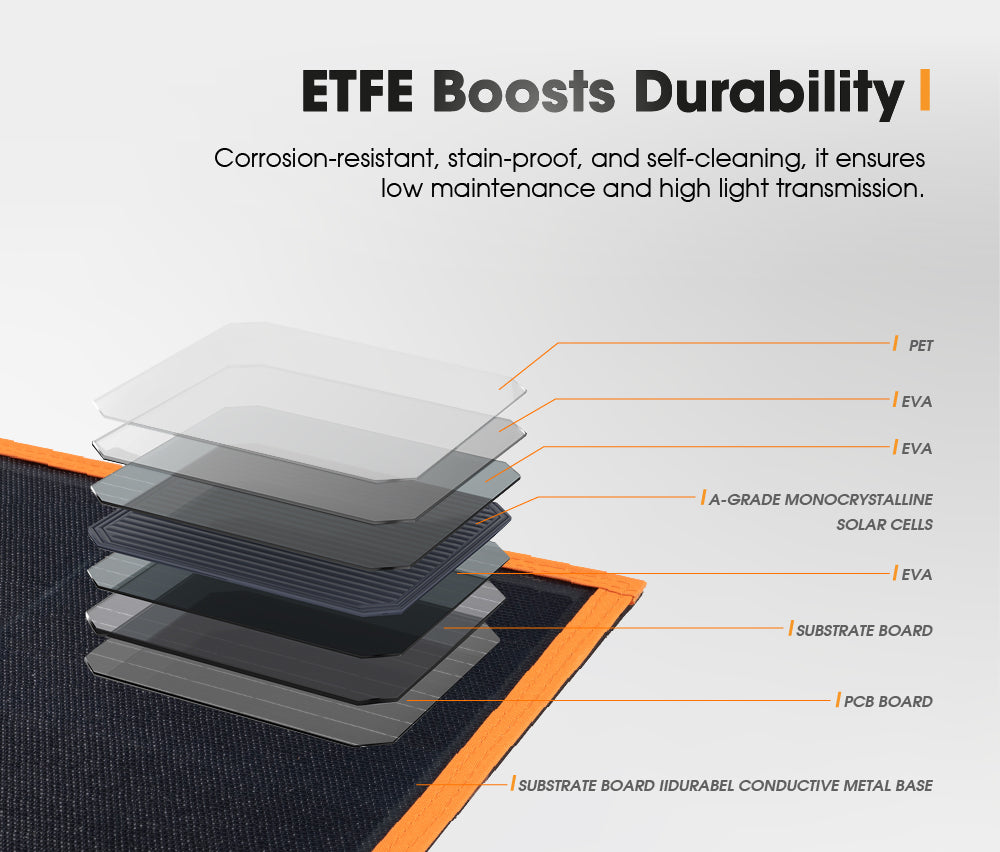

| Cell Coating: | ETFE |
| Backing Material: | Nylon |
| Conversion Effieiency: | 24% |
| Max. Power (PM): | 160W |
| Open Circuit Voltage (VOC): | 22.5V |
| Short Circuit Current (ISC): | 9.9A |
| Max. Power Voltage (VMP): | 17.3V |
| Max. Power Current (IMP): | 9.2A |
| Max. System Voltage: | 36V |
| Power Tolerance: | ±5% |
| Operating Temperature: | -40℃~85℃ |

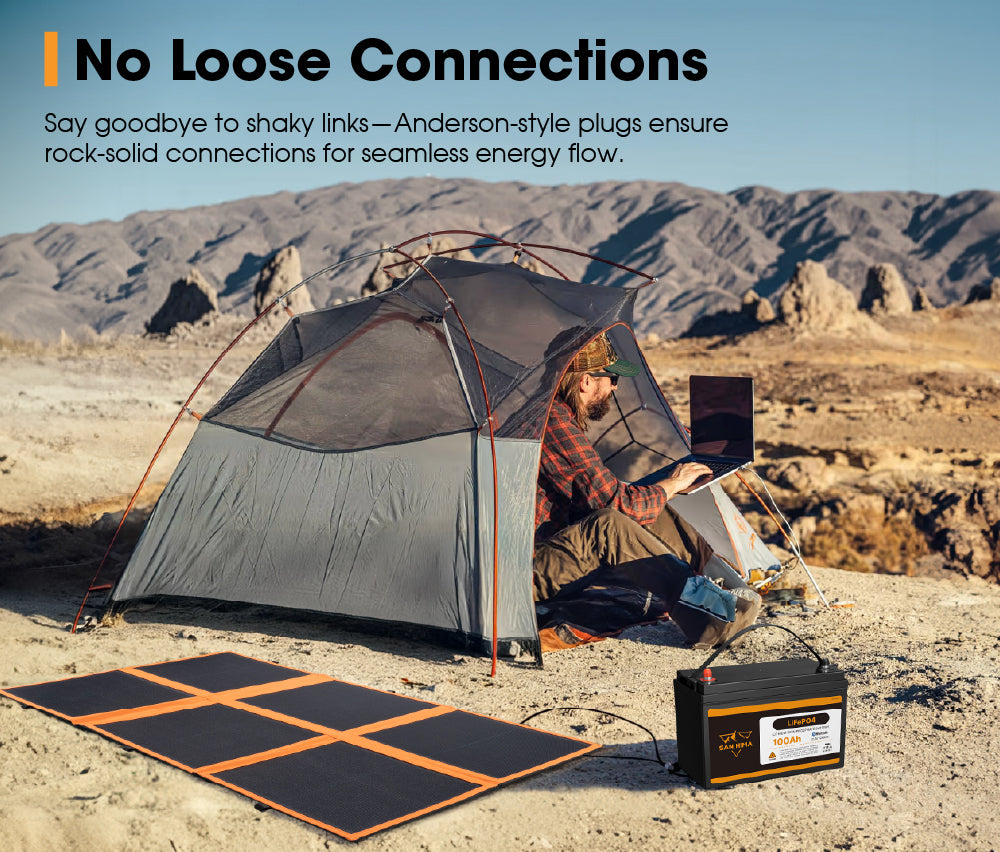

| Connector Type: | Anderson-style Plug |
| Certifications: | CE |

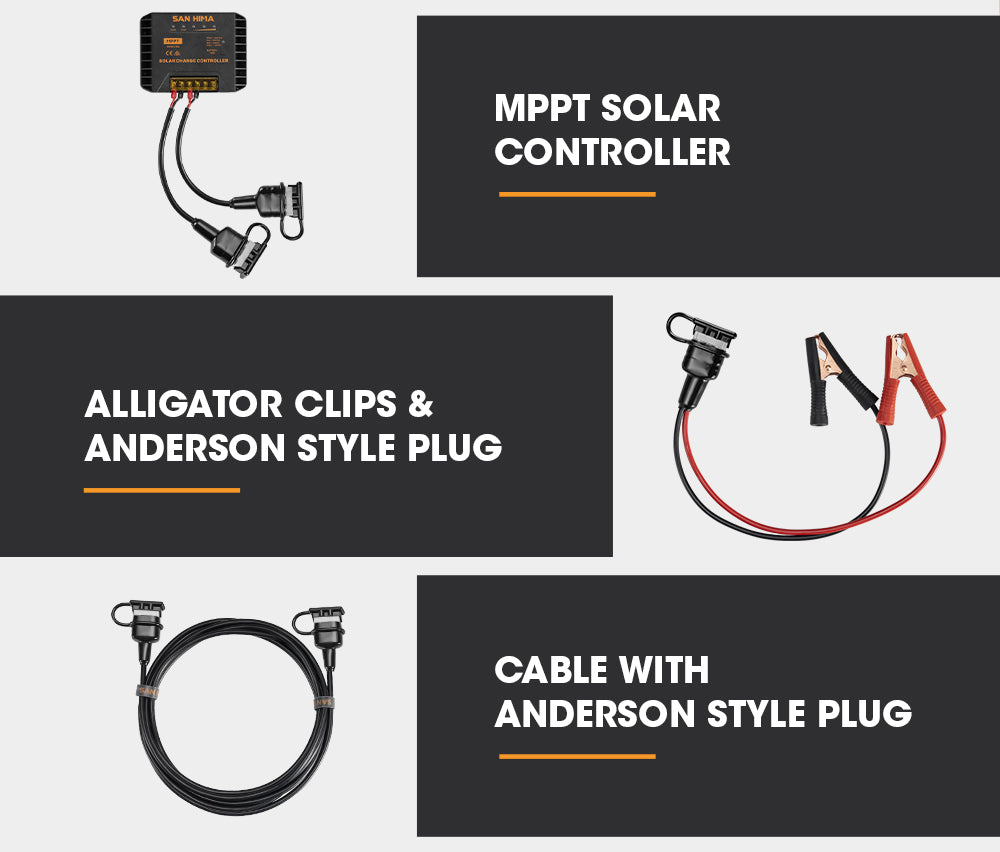

| MPPT Controller: | |
| Battery Voltage Range: | 12V/24V |
| Max. PV Open Circuit Voltage: | 50V |
| Max. Solar Input Voltage: | 50V |
| Rated Charge Current: | 20A |
| Rated Discharge Current: | 20A |
| Max. PV Input Power: | 500W |
| Discharge Circuit Voltage Drop: | ≤0.3V |
| Self Consumption: | ≤8ma |
| No Load Current: | ＜10ma |
| Standby Current Draw: | ≤4ma |
| Nominal Current Draw: | ≤10ma |
| USB Output: | Type A+Type C; 5V/2.4A |
| Operation Temperature: | -20℃~50℃ |
| Storage Temperature: | -30℃~70℃ |
| Relative Humidity: | ≤90% |

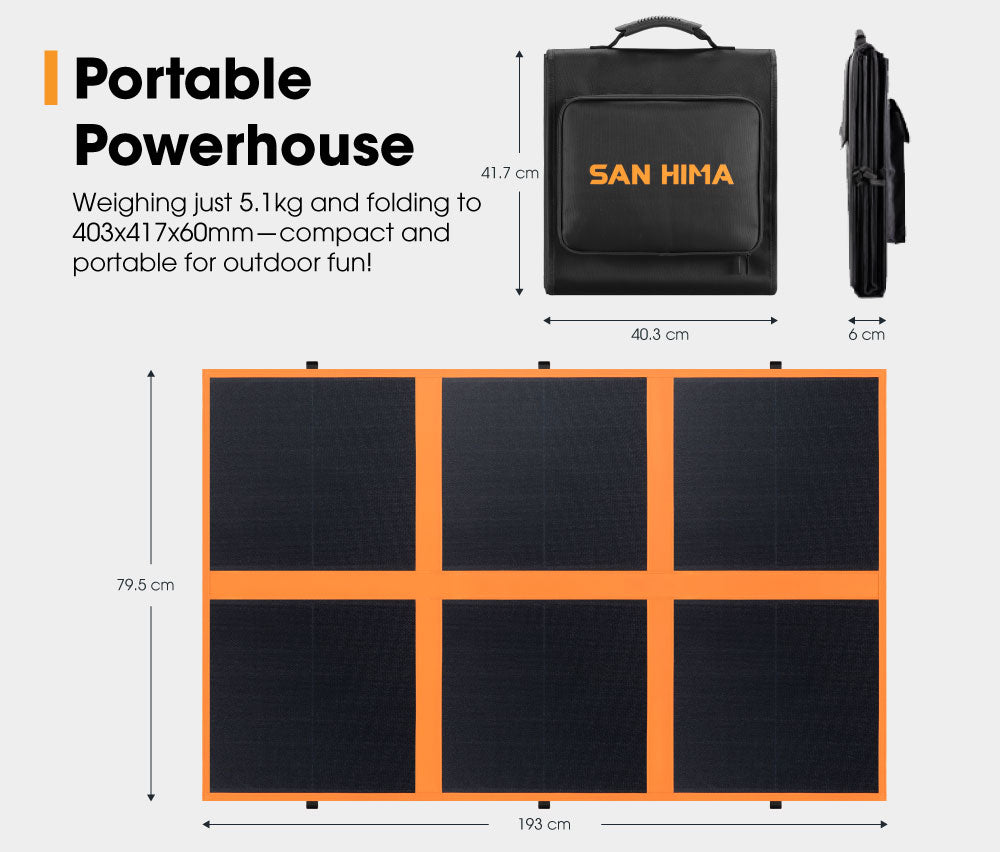

| Package Size: | 45.6cm(L) x 44.7cm(W) x 11.7cm(H) |
| Package Weight: | 5.5kg |
Overall rating: 4.8510637 / 5 from 47 reviews.

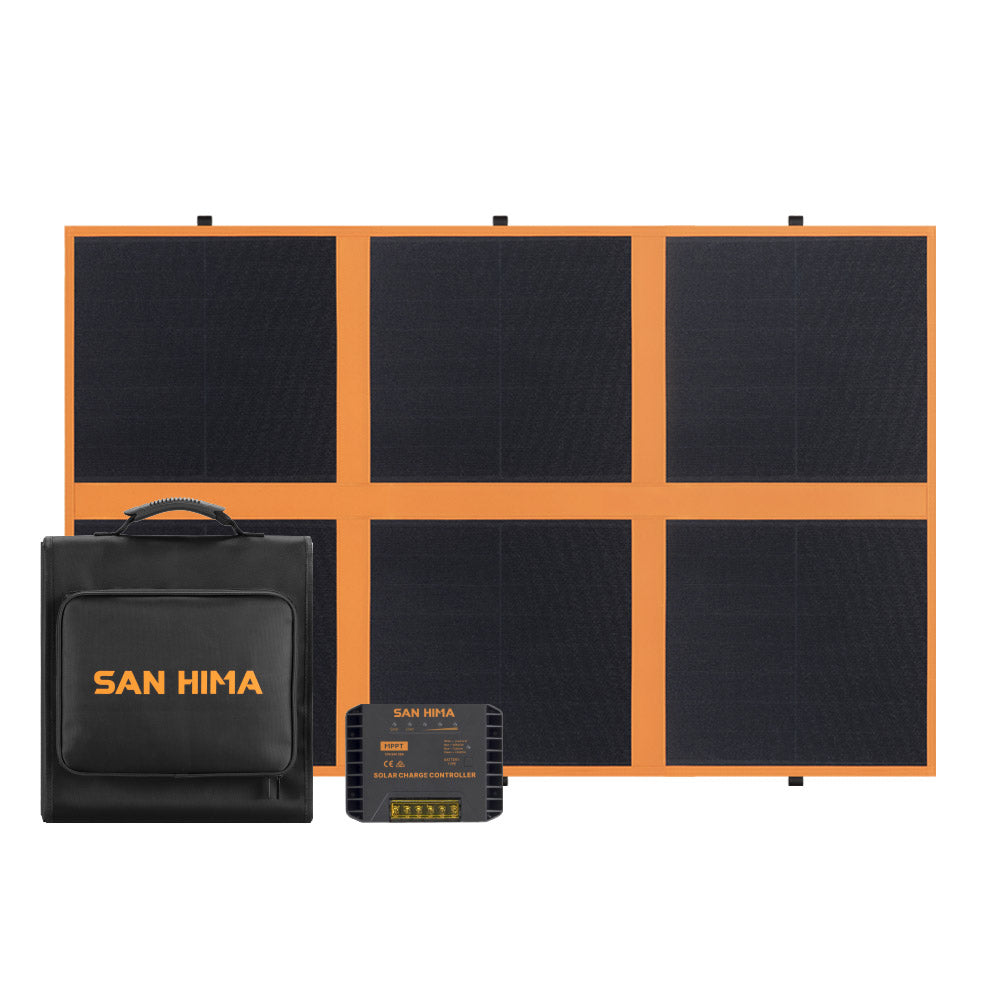

The San Hima 12V 160W Folding Solar Blanket offers impressive 24% conversion efficiency with HPBC technology, a robust ETFE film for protection, and versatile battery compatibility. It's lightweight and portable, featuring MPPT charging and USB ports for on-the-go power. Next-level protection and secure connections ensure reliable performance.
Review topics: [looks, quality, service, works, weight, value, delivery, price, blanket, output, dispatch, panel, controller, connectors, voltage].
"Very happy with the solar blanket; it is quite large and could be a bit heavy and awkward for older people, but that's the trade off to have 360 watt charging capacity. Not overly keen with the lay-flat only usage; would have liked the option of some type of attachable leg stands (probably with velcro) so it can be angled to get better sun capacity and allow air circulation around the panels."
"Rated at four stars vs. five as the unit is yet to prove itself to me long term, certainly an initial inspection and use of the product has shown it to be a quality construction / finish and it is certainly providing good feed to my 12v camping system. I've gone an oversize blanket knowing that as time passes solar blankets will not produce at their advertised rating, so ultimately I should end up with what I envisage will be my camping power requirements. Quick dispatch and arrival of order which was great. Thanks."
"Purchased as a back up, works well and highly recommended this product"
"First time shopping from Westport New Zealand. . well pleased with purchase and service kind regards Allan"
"Exceptional quality and works brilliantly even in dappled sun, finish of this is worth twice as much, highly recommended."
"San Hima Solar Blanket. Good price, good delivery time, works well. Happy with it. Thanks guys."
"Tested it after it had arrived not an overly bright day but still managed and to put out 6. 5A very happy"
"Used once and seems a quite good product."
"Great solar blanket. Light weight and decent wattage. Connectors were a nice touch to save wiring. Plug and play for ease of use. Works in well with my power station. The quality seems to be there so it should last me a while. If not I'll add another. Very happy customer"
"360 wt San Hema solar blanket used with my exsisting sola caravan setup used it for 7 days it exceeded my expectations I would highly recomend."
