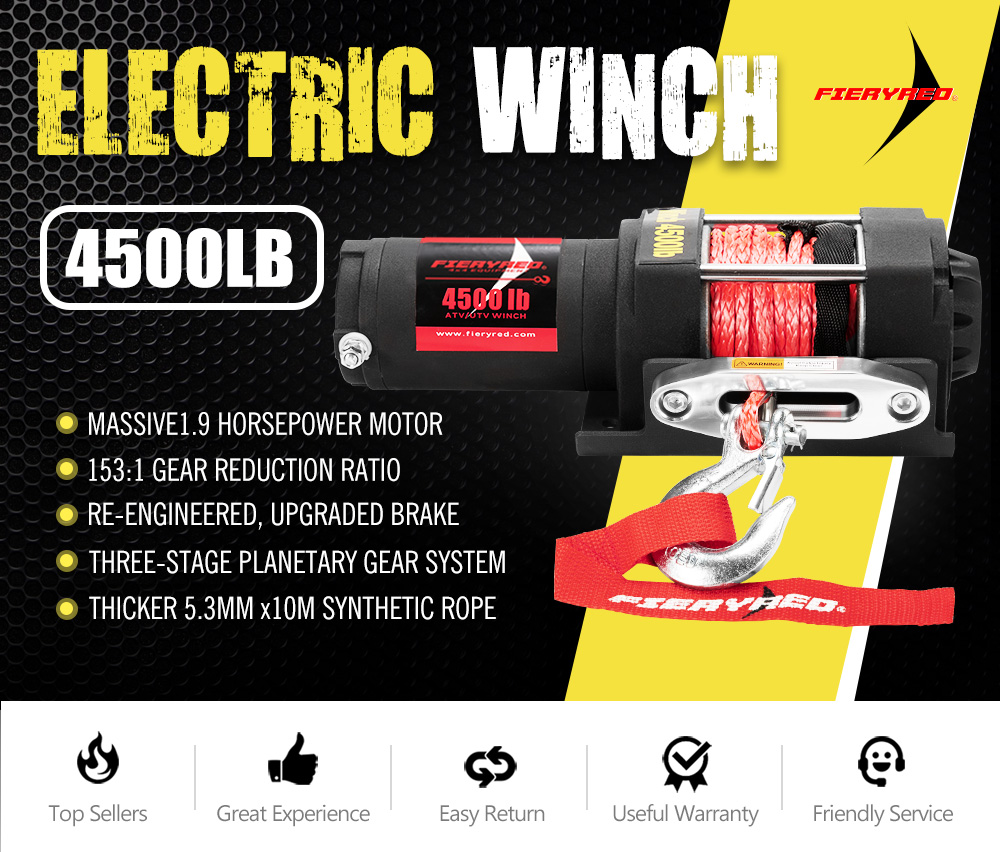

FIERYRED Wireless 4500LBS/2041kg 12V Electric Winch Synthetic Rope

: In stock

: Electric Winch

: FIERYRED

: L-WIN4500-ROPE-SUN

$169.95 $290.82

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
Description

If you are looking for a reliable and go anywhere winch, please look no further, this Fieryred 1.9 HP winch is electrically powered that is able to generate 4,500 lbs of hefty pulling power, which serves as a testament to its stronger gear ratio of 153:1 and a differential planetary gear train inside. This electric muscle features rainproof construction and a sealed engine to ensure reliable performance. And the 3 stage planetary gear system guarantees ultimate pulling power and smoothness.and the clutch lever will perfectly fit your hand, whether you wear gloves or not. The wireless remote control can effectively avoid getting things tangled up.Boasting a peerless performance, but comes at a fair price, this winch kit a must buy for fast, robust and reliable results.

FEATURES

Powerful sealed 1.9 HP motor and a full metal 3-stage planetary gear train that makes line speed faster under load.

Equipped with a gear reduction ratio of 153:1 and a Three-stage planetary gear train, a guarantee for stronger pulling capacity.

Designed for solid performance against corrosion and moisture, a great bonus for those living in rainy and stormy areas.

Noted: Pls. connect two long wires to power supply,and connect two short wires to motor!

This winch is designed only for pulling along a horizontal surface not for lifting a load under any circumstances.

Do not operate the winch at an angle of more than 15°, because angles greater than this will deform or damage parts of the winch.

When winching, you should stop pull the wire rope when red colored warning appears.

When hoisting, the winching capacity is only 1/5 compared with pulling along a horizontal surface.

Always ensure the clutch is fully engaged or disengaged. Failure to do so will significantly reduce winching capacity.

It is highly recommended to use batteries of more than 80A. Failure to do so will also reduce the winching capacity.

SPECIFICATIONS

Rated line pull: 4500LBS(2041kg) single line

Motor: 1.9HP Permanent Magnet

Gear Reduction Ratio: 153:1

Gear train: 3-Stage planetary

Cable: Dia.5.3mm x Length (10m)

Control: Remote Switch

Clutch: Sliding Ring Gear

Breaking action: Automatic In-the-Durm

Overall Dimension(LxWxH): 316x120x106mm

Weight: 8.2kg

Package Size: 36.5x30.5x36cm

PACKAGE INCLUDES

1 x 4500LBS Electric Winch

1 x Wireless Remote Control

1 x Wire Control Box

1 x Alloy Hawse Fairlead

1 x Installation Mounting Plate

1 x Clevis Hook
1 x Cable Controller
Set of Bolts
1 x Maual

WARRANTY

1 Year Warranty
