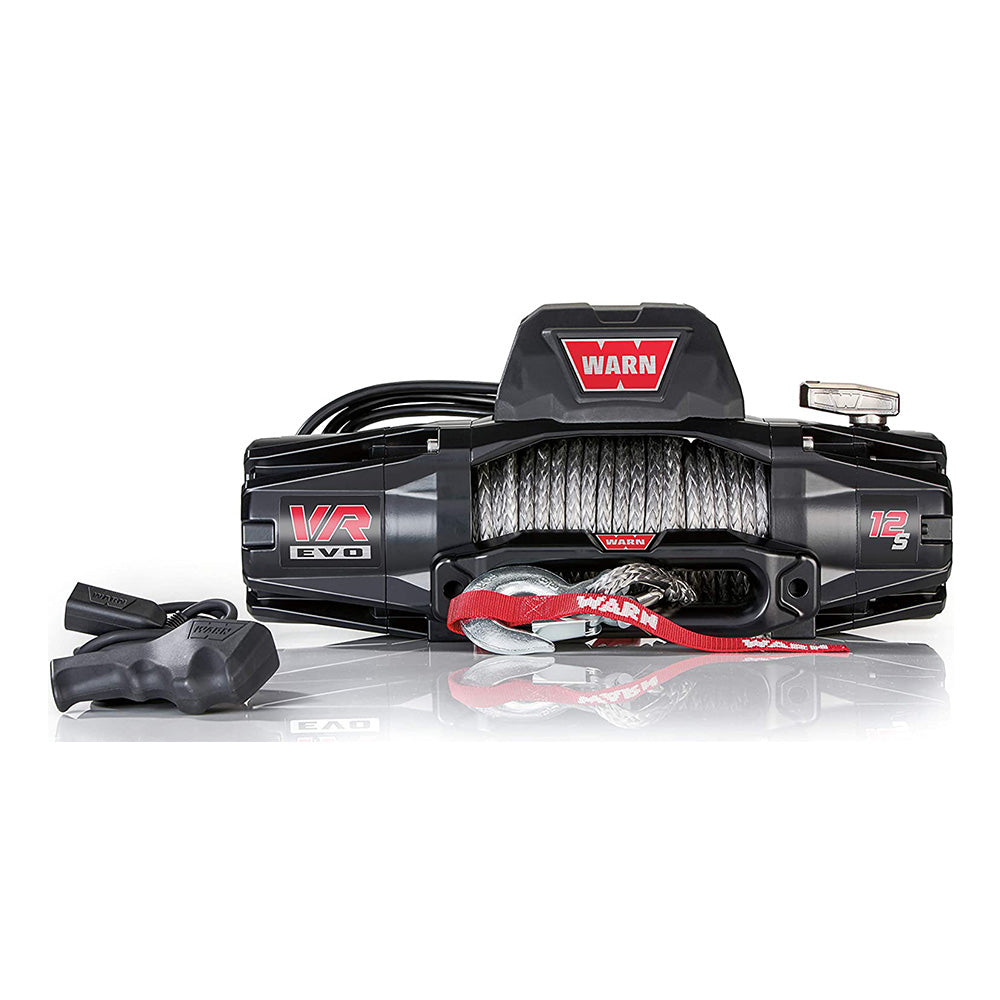

EVO 12-S WINCH C/W SYNTHETIC
People who bought this product also bought
Product Description
Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a state-of-the-art, two-in-one remote for added ease of use and versatility. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
Features
GTIN
Features
- A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
- IP68-rated waterproof winch construction keeps the elements out
- High-performance Albright contactor delivers maximum reliability
- Control packs can be relocated for low-profile installations
- Durable, one-piece cast-aluminum tie-plate for added strength and durability
- Two-in-one remote with wired AND wireless options for ease of use and versatility
- Limited lifetime warranty for mechanical parts and 7 years on the electrical
GTIN
Note: Please do not use 'P.O. Box' as your mailing address
Specifications
TYPE: | Electric |
RECOMMENDED USE: | Vehicle Recovery |
MOUNT TYPE: | Vehicle Mounted |
VOLTAGE: | 12 Volt |
MOTOR HORSEPOWER: | 4.6 Horsepower |
ELECTRICAL CONTROL TYPE: | Albright Contactor |
MOTOR TYPE: | Series Wound |
DRIVE GEAR TYPE: | 3-Stage Planetary |
GEAR REDUCTION RATIO: | 234:1 |
FREE SPOOLING: | Yes |
BRAKE TYPE: | Spring |
LINE DIAMETER (IN): | 3/8 Inch |
LINE MATERIAL: | Synthetic |
LENGTH (FT): | 90 |
FAIRLEAD TYPE: | Hawse |
REMOTE TYPE: | 2 in 1 plug in remote with wireless capability |
MOUNTING HOLE QUANTITY: | 4 |
MOUNTING PATTERN LENGTH (IN): | 10 Inch |
MOUNTING PATTERN WIDTH (IN): | 4-1/2 Inch |
INCLUDES MOUNTING HARDWARE: | Yes |
COLOR: | Black |
DRUM MATERIAL: | Steel |
MAX LINE PULL/ LINE SPEED: | 12,000 pounds / 4.0 feet per minute |
MAX AMP DRAW/ LINE PULL: | 396 Amps / 12,000 pounds |
Package Includes
- 1 x 12,000LBS Electric Winch
Warranty
Limited lifetime warranty (Geartrain), 7 year warranty (electrical)
