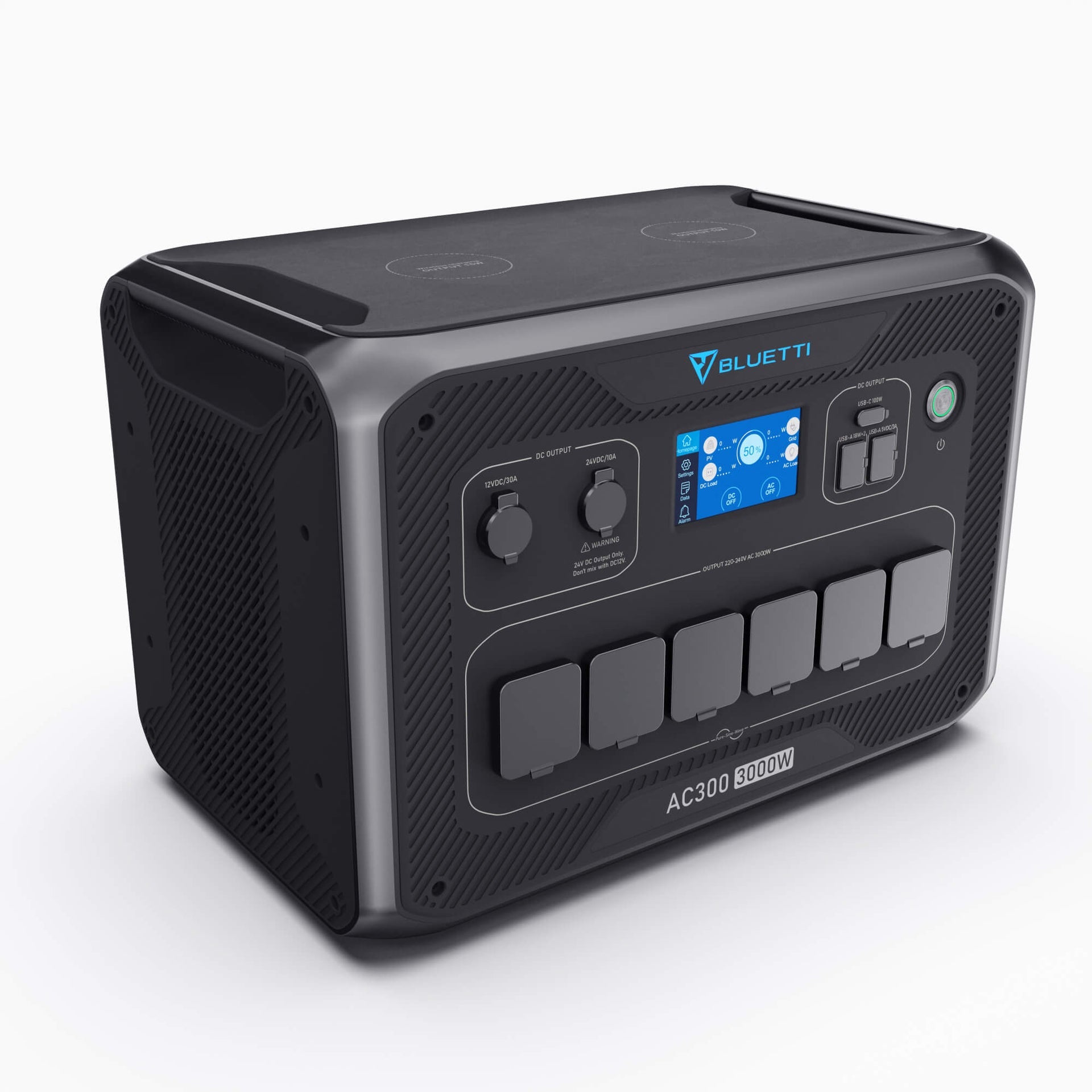

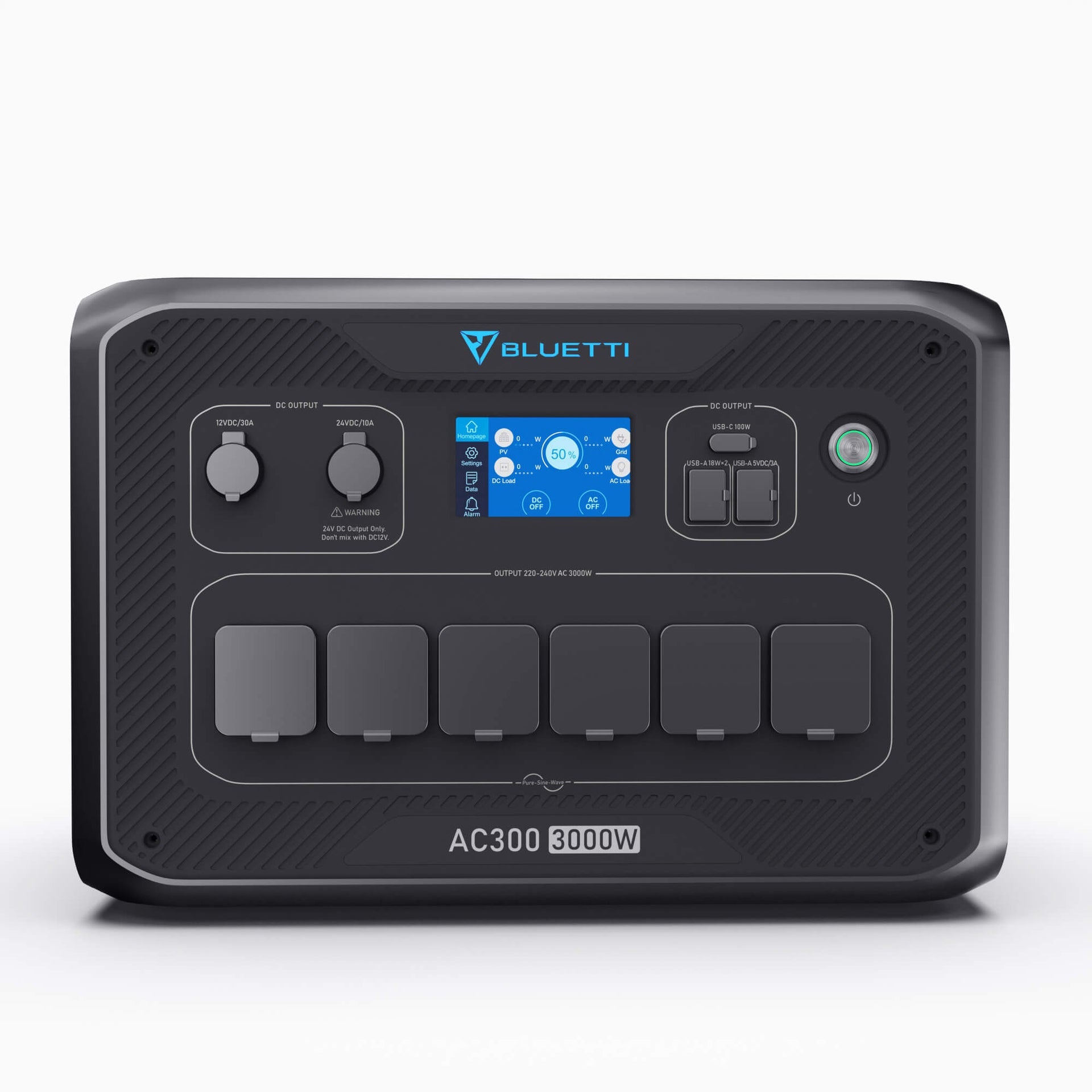

AC300 OUTPUT |
AC Outlets:
|
6x 220V-240V 3,000W In Total |
Inverter Type:
|
Pure Sine Wave |
Surge Power: |
6000W |
USB-C Port: |
1 x 100W Max. |
USB-A Port: |
2 x 5V/3A USB-A 2 x 18W USB-A |
12V* DC Outlets: |
1 x 12V/30A (RV Outlet) 1 x 24V/10A (Car Outlet) *All Regulated. |

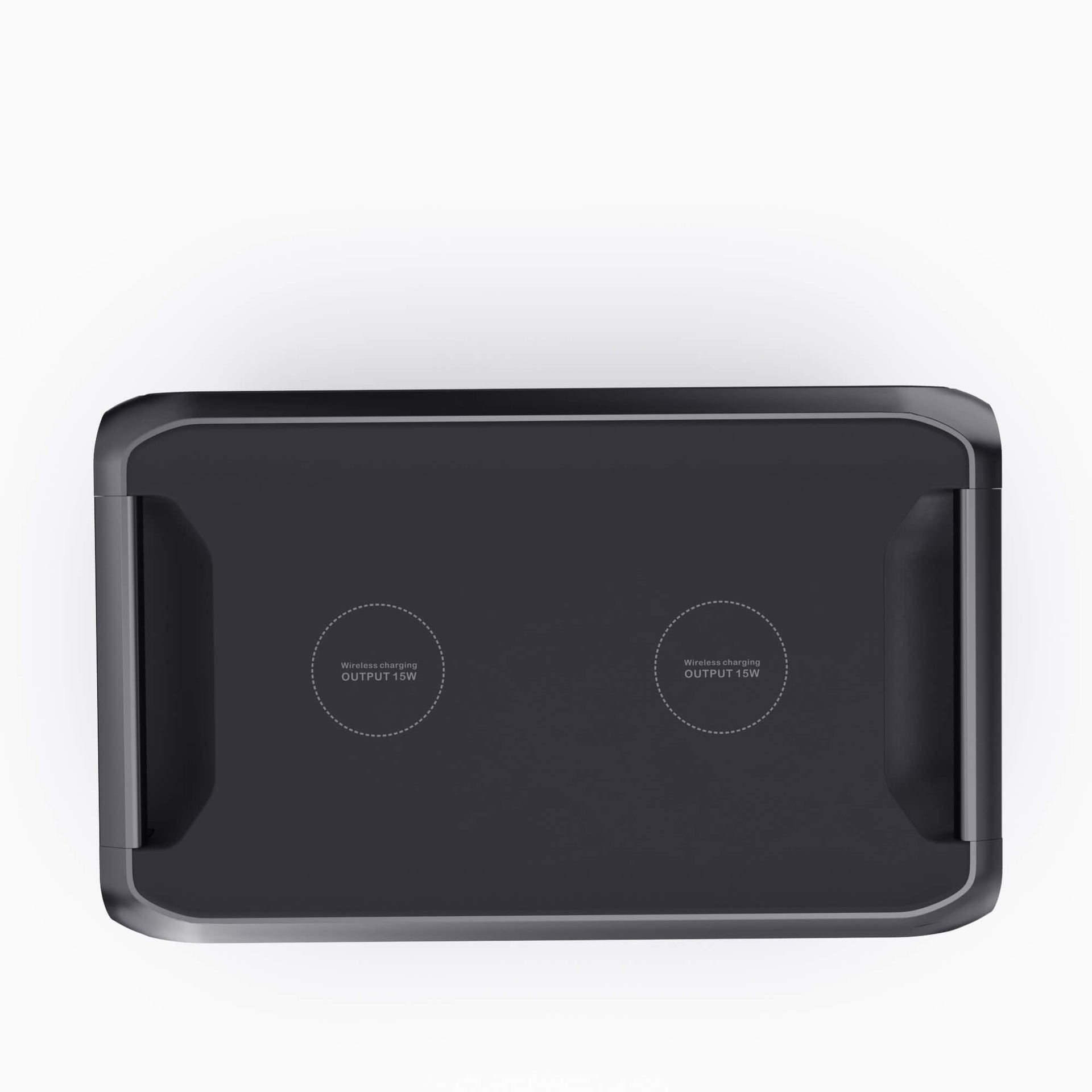

Wireless Charging Pad: |
2 x 15W Max. (For Each) |
AC300 INPUT |
AC Charging Cable Input: |
3,000W Max. |
Solar Input: |
2,400W Max., VOC 12-150VDC, 12A |
Car Input: |
12/24V from Cigarette Lighter Port |
Max Input: |
5,400W, with AC and Solar Input Simultaneously |
AC300 GENERAL |
App Control: |
Yes, Wifi&Bluetooth |

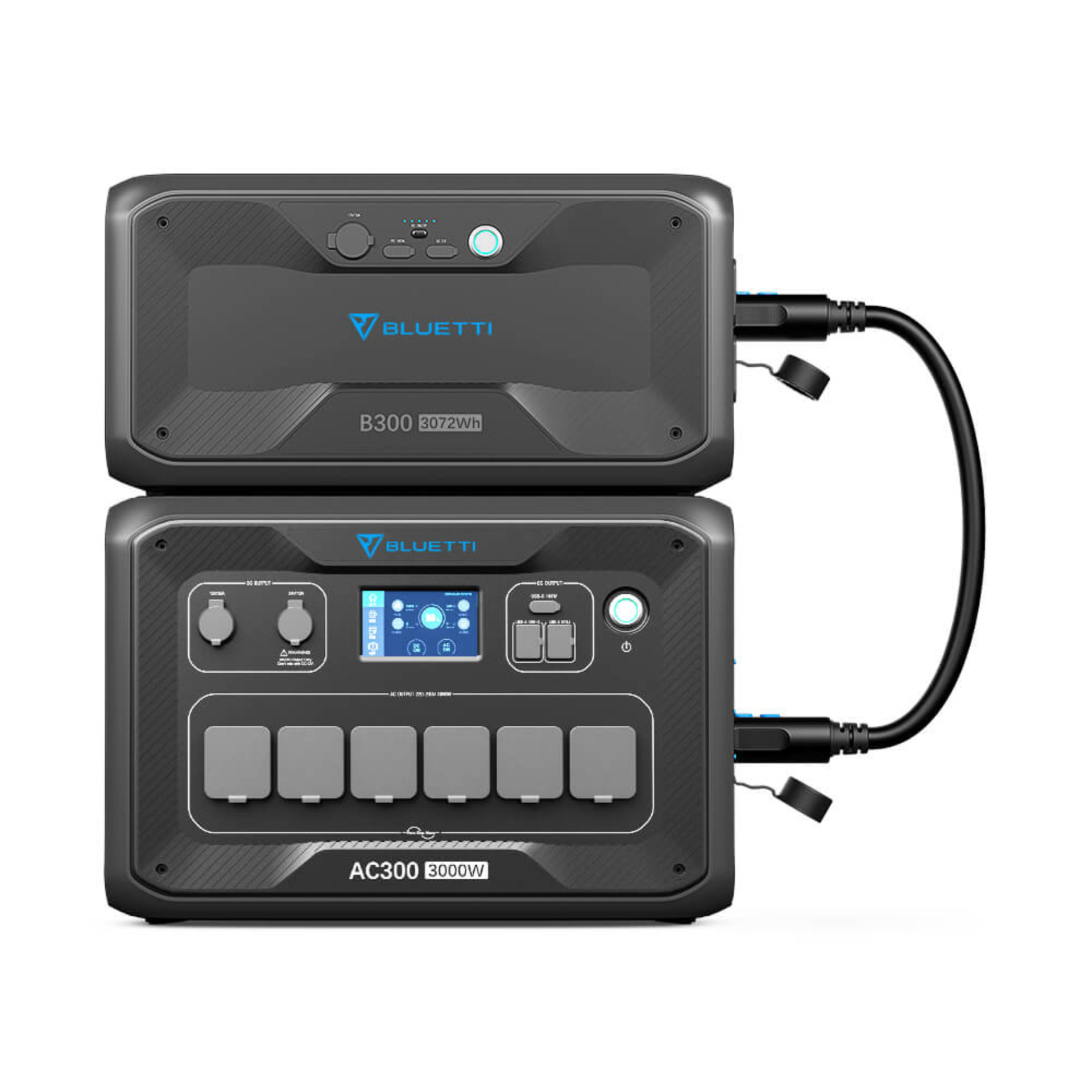

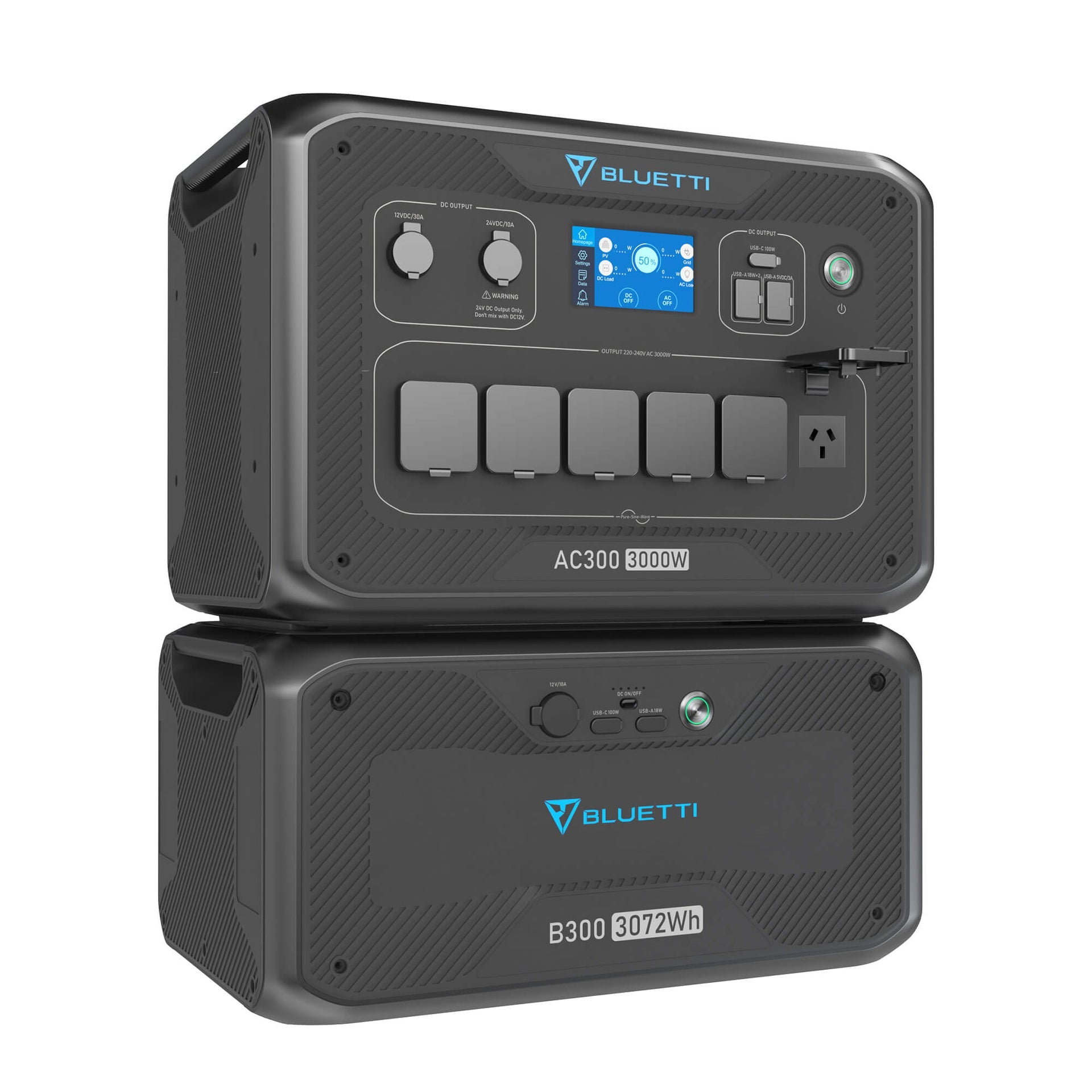

Scalability: |
Expandable W/Up to 4 x B300 |
Simultaneous Recharge & Discharge: |
Yes |
Weight: |
47.6lbs (21.6kg) |

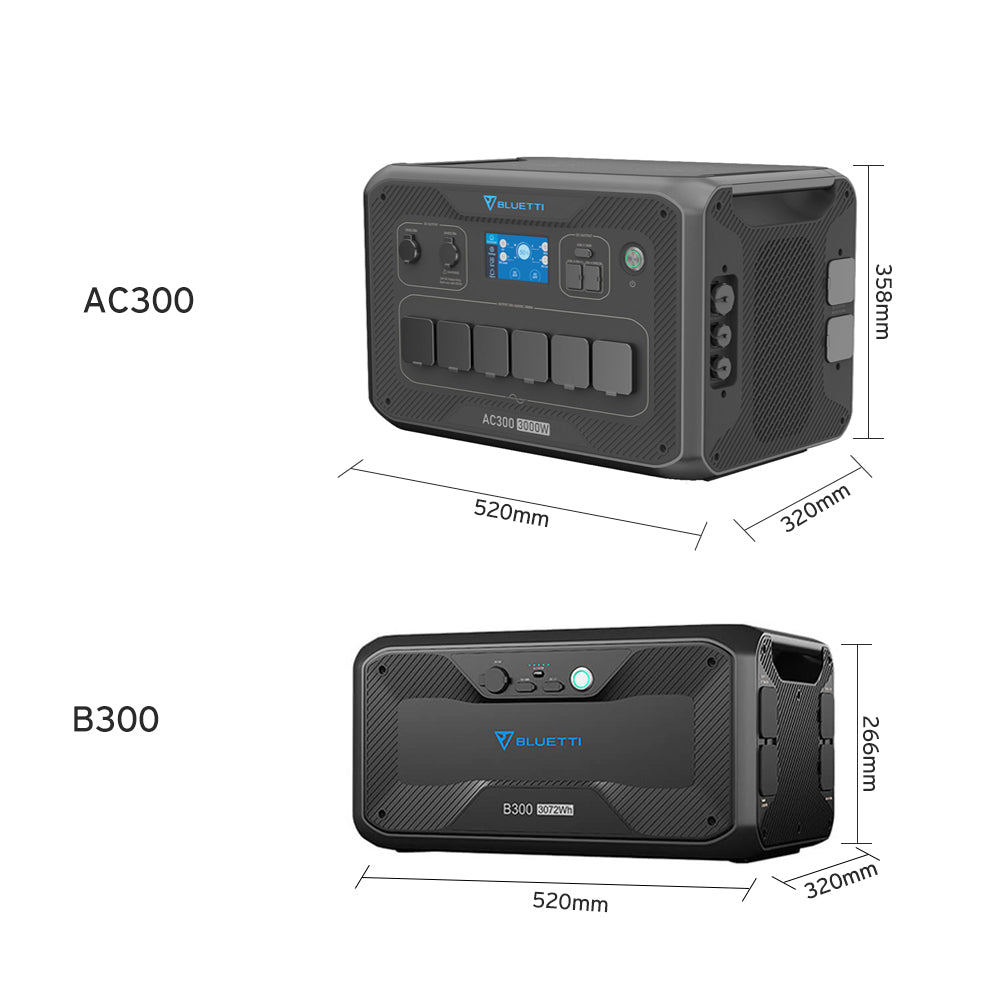

Dimensions (LxWxD): |
20.5 x 12.5 x 14.1in ( 52 x 32 x 35.80cm) |
Operating Usage Temperature: |
-4-104℉ (-20-40℃) |
Storage Temperature: |
-4-104℉ (-20-40℃) |
Certification: |
UL Standard, PSE, FCC, CE, UN38.3, msds, SAA and ROHS |

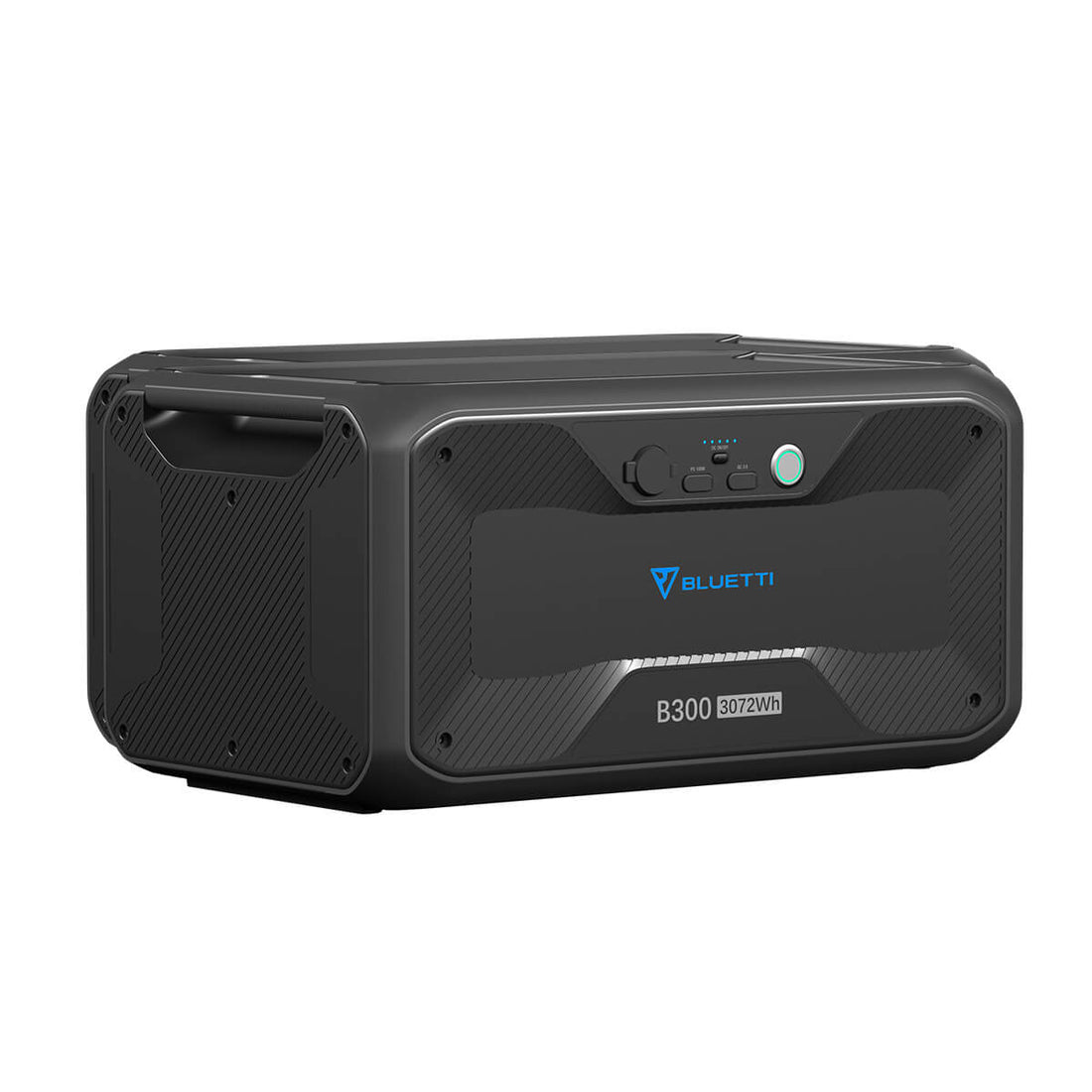

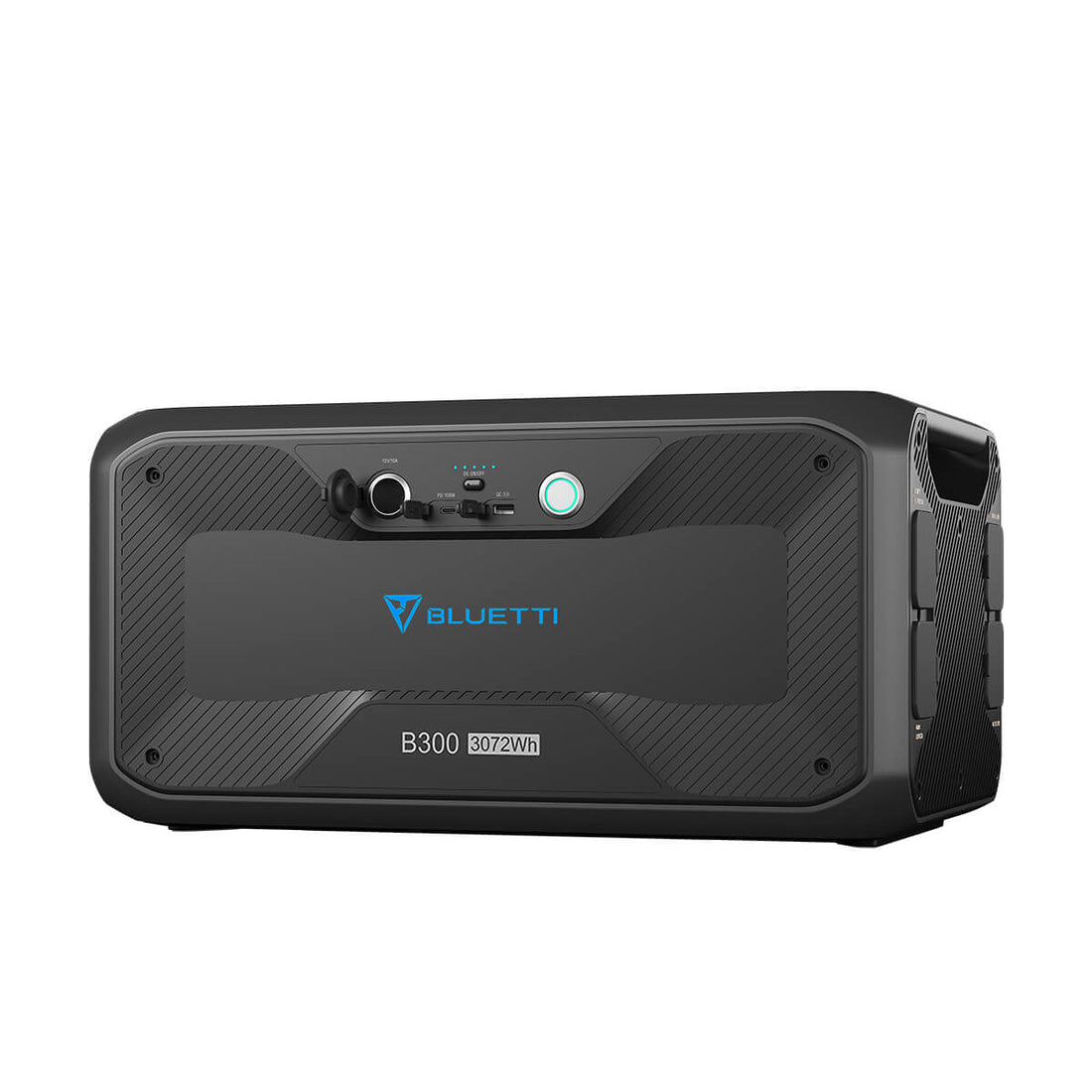

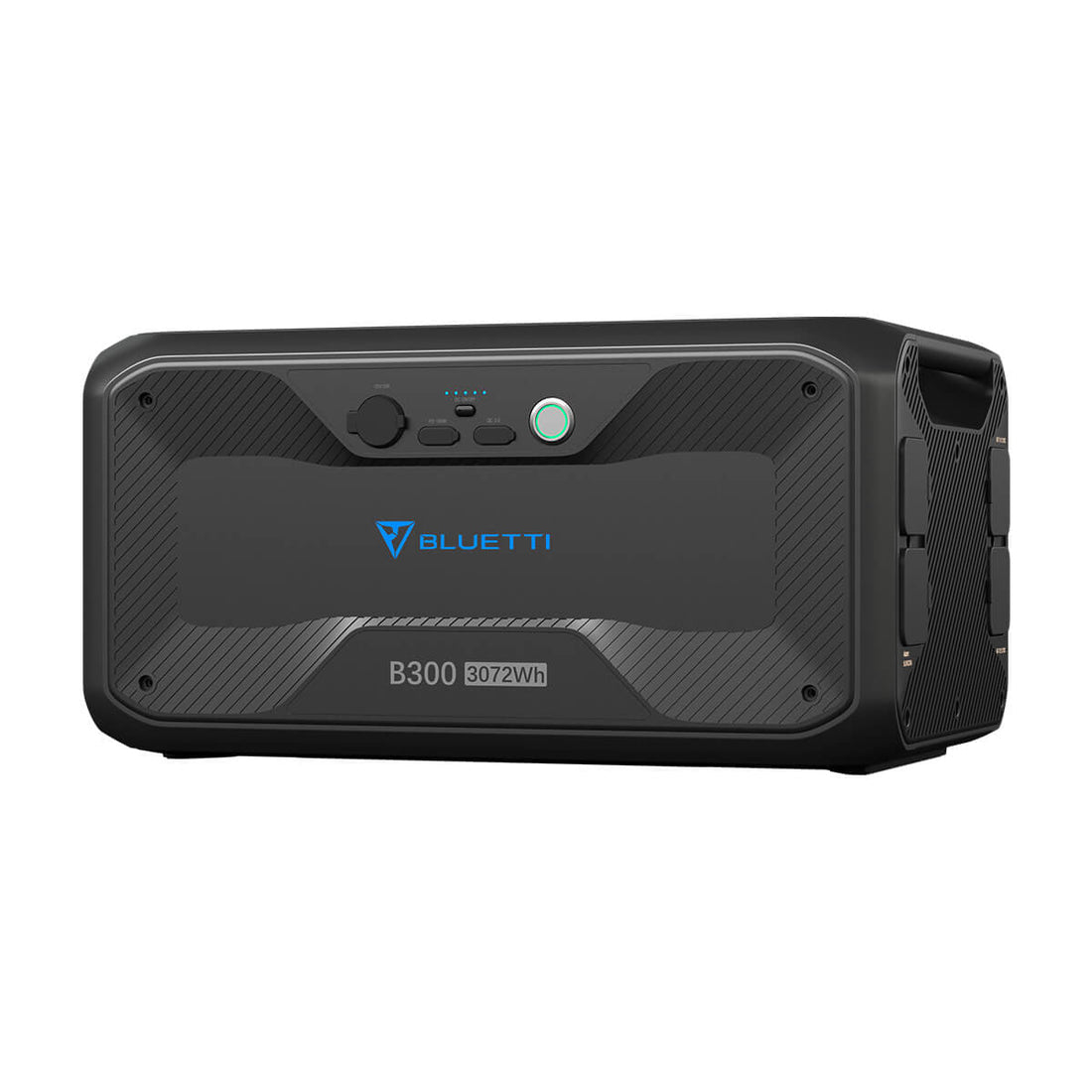

B300 BATTERY INFO |
Capacity:
|
3072Wh(51.2V, 60Ah) |
Type: |
LiFePO4(Lithium Iron Phosphate) |
Life Cycle: |
3500+ Cycles to 80% Original Capacity |
Shelf-Life: |
Recharge to 80% Every 3-6 Months |
Management System: |
MPPT Controller, BMS, etc |
B300 OUTPUT |
USB-C Port: |
1 x 100W Max |
USB-A Port: |
1 x 18W USB-A |
12V DC Outlet*: |
1 x 12V/10A (Car Outlet) *All Regulated |
B300 INPUT |
AC Input: |
500W Max |
Solar Input: |
200W Max., VOC 12-60VDC, 10A |
Car Input: |
12/24V from Cigarette Lighter Port |
Max Input: |
700W, With AC Adatper + Solar Input Simultaneously |
B300 RECHARGE TIME |
AC: |
≈ 6.5~7 Hours at 500W |
Solar: |
≈ 15.5~16 Hours at 200W (With prime sunshine, ideal orientation and low temperature) |
12V/24V Car Outlet (100W/200W): |
≈ 30 or 15 Hours |
AC + Solar: |
≈ 5 Hours at 700W (With prime sunshine, ideal orientation and low temperature) |
Solar + Solar: |
≈ 5 Hours at 700W (D050S DC Charging Enhancer REQUIRED) |
Dual AC: |
≈ 5 Hours at 700W (Extra adapter REQUIRED) |
B300 GENERAL |
Pass-through Charge: |
Yes |
Weight: |
79.6lbs(36.1Kg) |
Dimensions (LxWxD): |
20.5*12.5*10.5 inch ( 52 x 32 x 26.6cm) |
Operating Usage Temperature: |
-4-104℉ (-20-40℃) |
Storage Temperature: |
-4-104℉ (-20-40℃) |
Certification: |
UL Standard, CEC, DOE, FCC, CA Prop 65 |
