AC200MAX BATTERY INFO |
Capacity: |
2048Wh (51.2V,40Ah) |
Cell Chemistry:
|
LiFePO4 (Lithium Iron Phosphate) |
Lifecycle:
|
3,500+ Cycles to 80% Original Capacity |
Shelf-life: |
Recharge to 80% Every 3-6 Months |
Management System: |
MPPT Controller, BMS, etc |
AC200MAX OUTPUT |
AC Output:
|
4 x 220V-240V,2200W In Total |
Inverter Type: |
Pure Sine Wave |
Surge Power: |
4800W |
USB-C Port: |
2 x 5V/3A USB-A 2 x 18W USB-A |
12V DC Outlets:
|
1 x 12V/30A (RV Outlet) 1 x 12V/10A (Car Outlet) 2 x 12V/10A DC 5521 (5.5mm Outlet) *All Regulated. |
Wireless Charging Pad: |
2 x 15W Max. (For Each) |
AC200MAX INPUT |
AC Adapter Input: |
400W. |
Solar Input: |
900W Max.OCV 10-145VDC, 15A |
Car Input: |
12/24V from Cigarette Lighter Port |
Max Input: |
1,300W, with AC+Solar Input |
AC200MAX RECHARGE TIMES |
AC Adapter (400W): |
≈5.5~6 Hours |
Solar (900W): |
≈3~3.5 Hours (With prime sunshine, ideal orientation and low temperature) |
12V/24V Car Outlet (100W/200W): |
≈10 or 20 Hours |
AC Adapter + Solar (1300W): |
≈2.0~2.5 Hours (With prime sunshine, ideal orientation and low temperature) |
Dual AC Adapters (800W): |
≈3~3.5 Hours (Extra adapter is REQUIRED) |
AC200MAX GENERAL |
Scalability: |
Expandable w/ Up to 2 x B230 or 2 x B300 |
Pass-through Charging: |
Yes |
Weight: |
61.9lbs (28.1kg) |

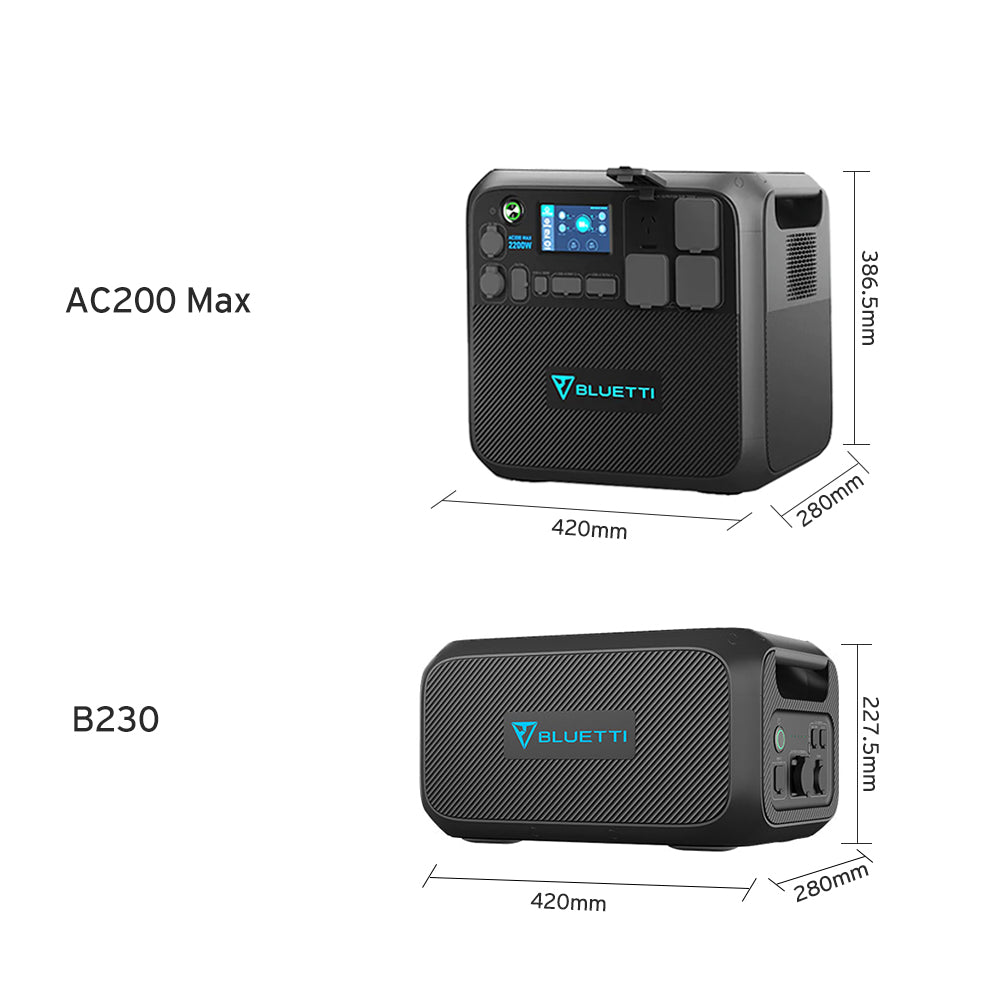

Dimensions (LxWxD): |
16.5 x 11 x 15.2 in ( 42 x 28 x 38.65cm) |
Operating Usage Temperature: |
-4-104℉ (-20-40℃) |
Storage Temperature: |
14-113℉ (-10-45℃) |
Certification: |
UL, CEC, DOE, FCC, CA Prop 65 |
B230 BATTERY INFO |
Capacity:
|
2048Wh (51.2v,40Ah) |
Cell Chemistry: |
Lithium Iron Phosphate (LiFePO4) |
Lifecycle: |
3500+(to 80%); 6000+(to 50%) |
Shelf-Life: |
Charge Every 3-6 Months |
B230 PORTS |
AC Input: |
500W |
Solar Input: |
Max 10A(Via BLUETTI D050S) |
Car Input: |
12/24V,8.2A(Via BLUETTI D050S) |
DC Output: |
1*12V/10A Cigarette Lighter Port |
USB Output: |
1*18W USB-A 1*100W USB-C |
Environmental Requirements: |
Storate Temperature: 20-40℃(-4-104℉) Charge Temperature: 0-40℃ (32-104℉) Discharge Temperature:-20-40℃(-4-104℉) |
B230 GENERAL |
Weight: |
21.8Kg/48lbs |
Dimensions (LxWxD): |
16.5*11*8.9 inch |
Operating Usage Temperature: |
0-40°C/32°F-104°F |
Certification: |
CEC, DOE, FCC, QC3.0, CA Prop 65 |
