LIGHTFOX 23inch Led Light Bar 1 Lux @ 520M IP68 96000LM

Product Code: 93S-DDT23BT-W+U49RBB-P*2-SUN

Availability:In stock

Description

Our new DDT series LED light bar is a versatile creation to help you out in driving at night, on low light conditions or on a rainy weather. It Features Philips Lumiled® LUXEON LEDs which produce incredible amount of luminous flux while maintaining low power consumption, maximize the fuel economy of the vehicle. New TRIPLE row spot beam configuration offering a staggering 1 LUX @ 520m distance penetration,Unique DOUBLE row spread beam offers 170° super wide horizontal projection on both ends of the light bar, lighting up all the surrounding which could not be seen on standard high beam or traditional 60° spread light bars. It Features IP68 dust/particle tight and waterproof up to 3 metres depth,which made of Industrial grade heavy duty Diecast Aluminium body with 3mm PMMA lens will ensure that the light bar will survive long in harsh outback condition. With an Ultra-low amp draw stabiliser for maximum lifespan, to double up your savings on your pocket.

FEATURES

Triple-Row & Nest Reflector Cup Design Pushes Lighting Efficiency To The Max.

The Unbreakable toughened PMMA surface with high light transmission.

IP68 High-grade anti-corruption diecast aluminium housing.

100% waterproof, dustproof & quakeproof for extreme environment.

Oversized grooved heat sink fins extends cooling surface for quick heat elimination.

Broad reflective plate allows multi wide angle refraction,ideal for ambient lighting.

Applying to difference light resource(HIGH LED Lamp).

Advanced new design, More Intense Leds Than Other Light bar In same Length.

Adjustable & Durable Alu Firm Mounting Brackets.

Black Bull Bar brackets to suit 49-54mm tube diameter

SPECIFICATIONS

23inch LED Light Bar Operating Voltage: 9-32V DC

Waterproof Rate: IP 68

Amp Draw: 7.35 @13.6v

LEDs: 96x Philips Lumileds LED

Base Color: Black

Color Temperature: 6000K

Material : Diecast aluminum housing

Lens material: PMMA

Mounting Bracket: Alu firm bracket

Beam Type: spot flood (24F/60S/24F)

Life Span: 30000+hours

Dimensions: 23 inch

Theoretical Lumens Output:96,000LM

Distance: 1 Lux @ 520 Meters

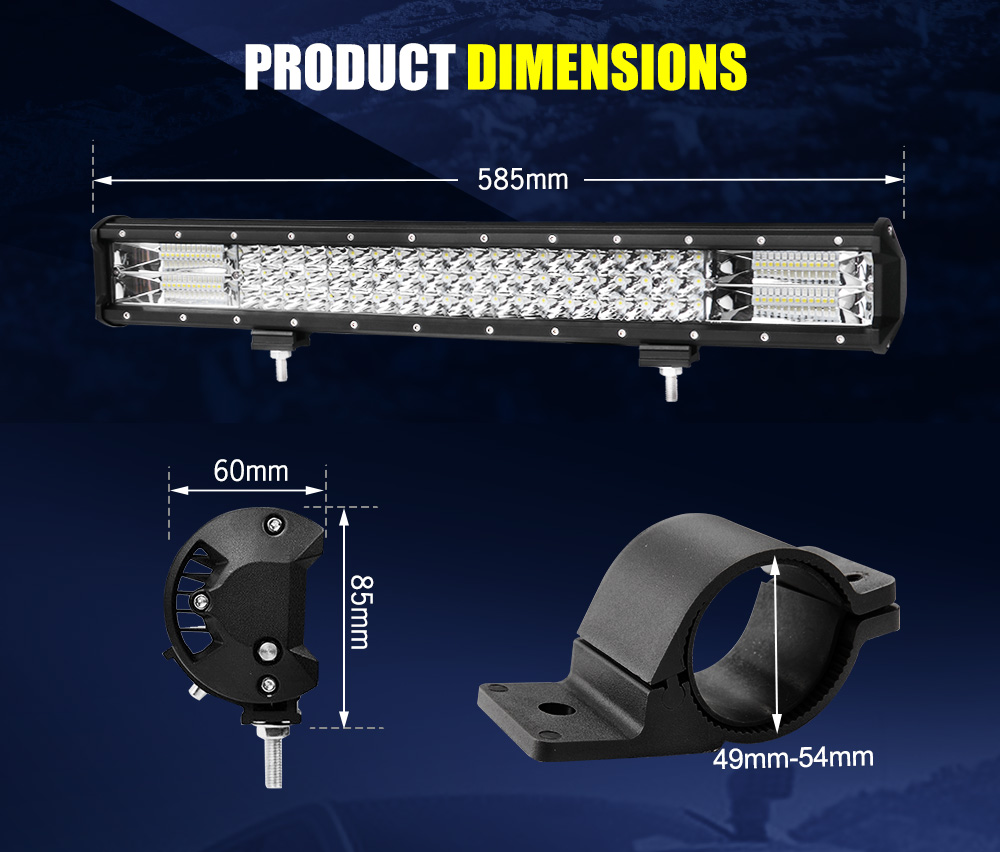

Size(W+D+H): 585mm x 120mm x 60mm

Weight: 4kg(Aprox including box)

Bullbar Mounting Bracket Suitable stud size: 10mm (light bar bolt)

Mount Material: Reinforced engineering plastic

Weight: 350g (Per Pair with package)

Size: 122*51*54mm

PACKAGE INCLUDES

1 x Led Light Bar

1 x Free Wiring Kit

1 x Bullbar Mounting Bracket

WARRANTY

3 Years Warranty
