LIGHTFOX 23inch Led Light Bar 1 Lux @ 630M IP68 85000 Lumens

0.0 star rating Write a review

: Unavailable

: light bar

: LIGHTFOX

: 93S-F23BT+PLATE-FRAME-SUN

$99.95 $163.55

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
FEATURES

The Unbreakable toughened PMMA surface with high light transmission.

IP68 High-grade anti-corruption diecast aluminium housing.

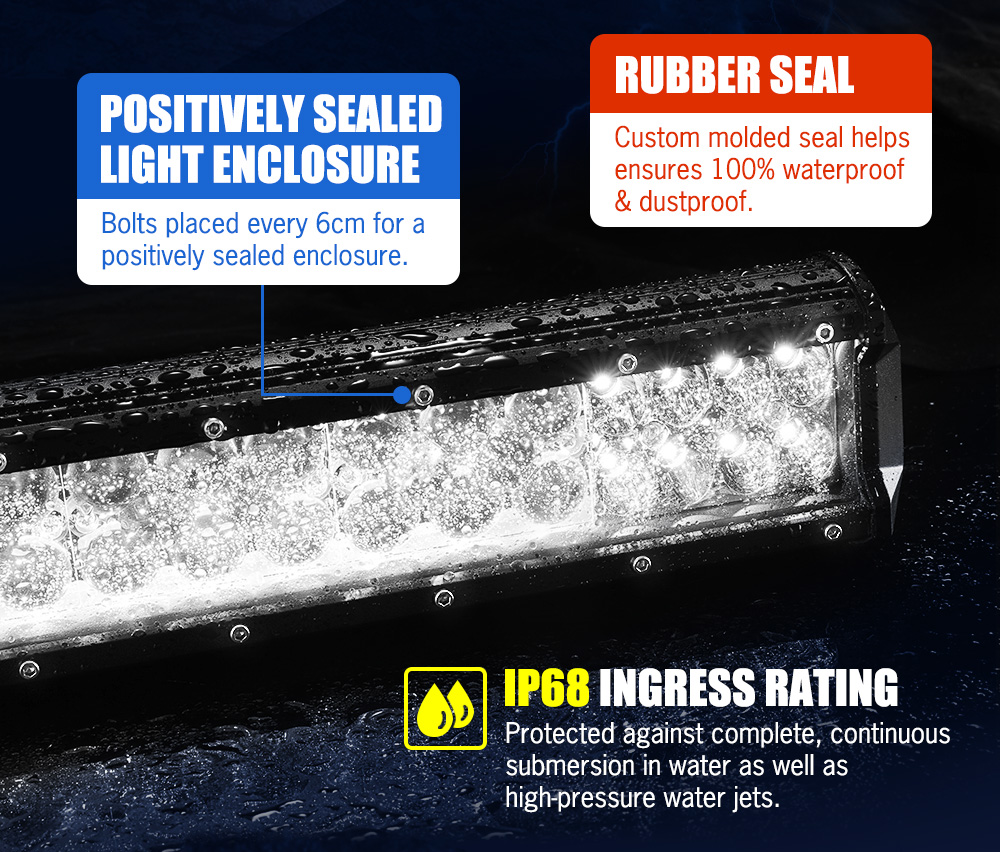

100% waterproof, dustproof & quakeproof for extreme environment.

Middle Triple Row 8°hyperspot lens for ultra distance [email protected]

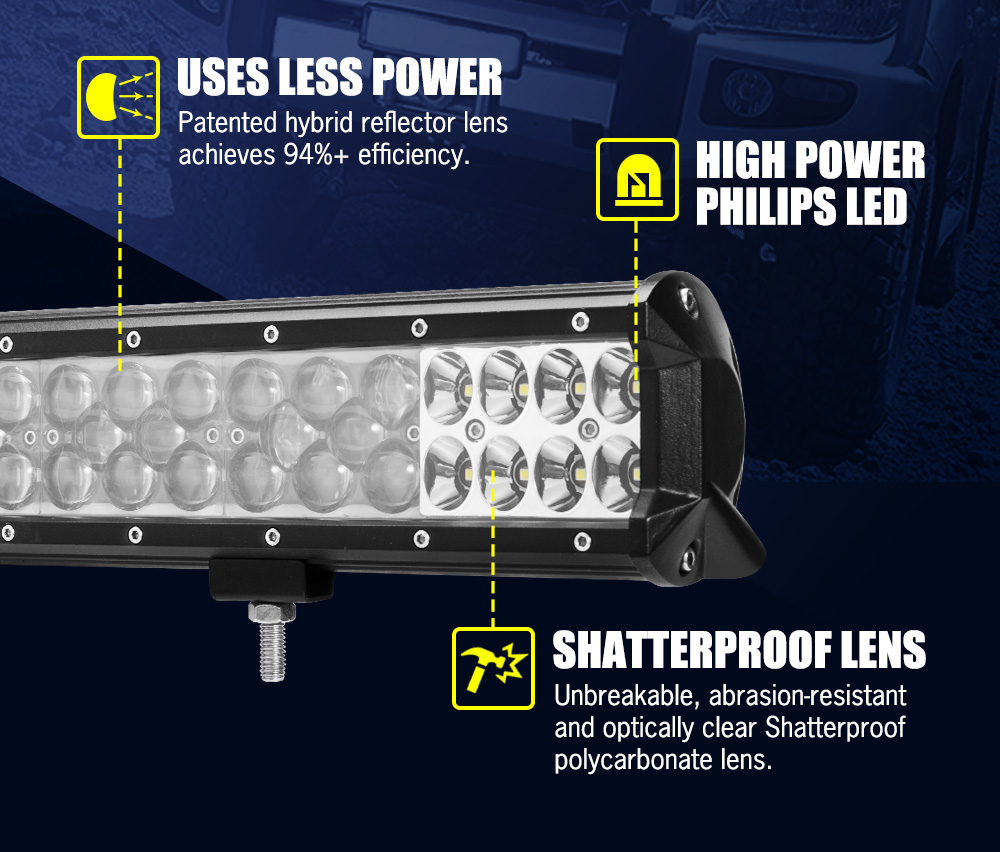

Side Dual-Row & Nest Reflector Cup Design for the best lighting coverage.

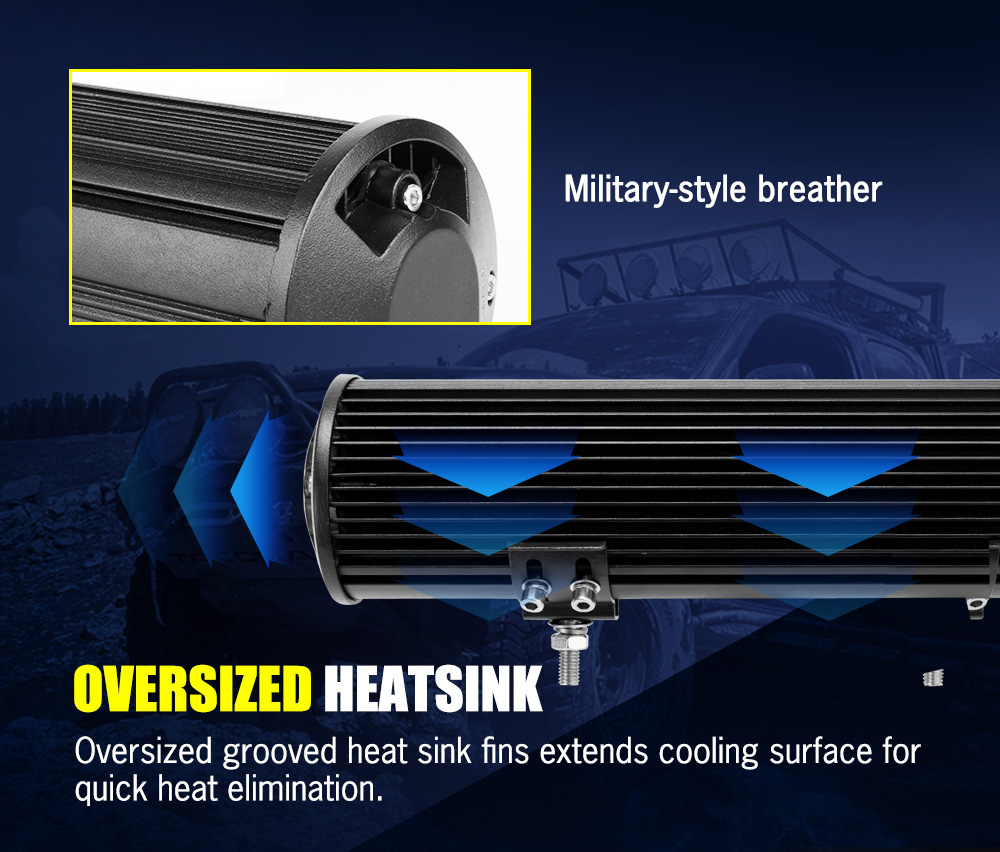

Oversized grooved heat sink fins extends cooling surface for quick heat elimination.

Broad reflective plate allows multi wide angle refraction,ideal for ambient lighting.

Applying to difference light resource(HIGH LED Lamp).

Advanced new design, More Intense Leds than Other Light bar In same Length.

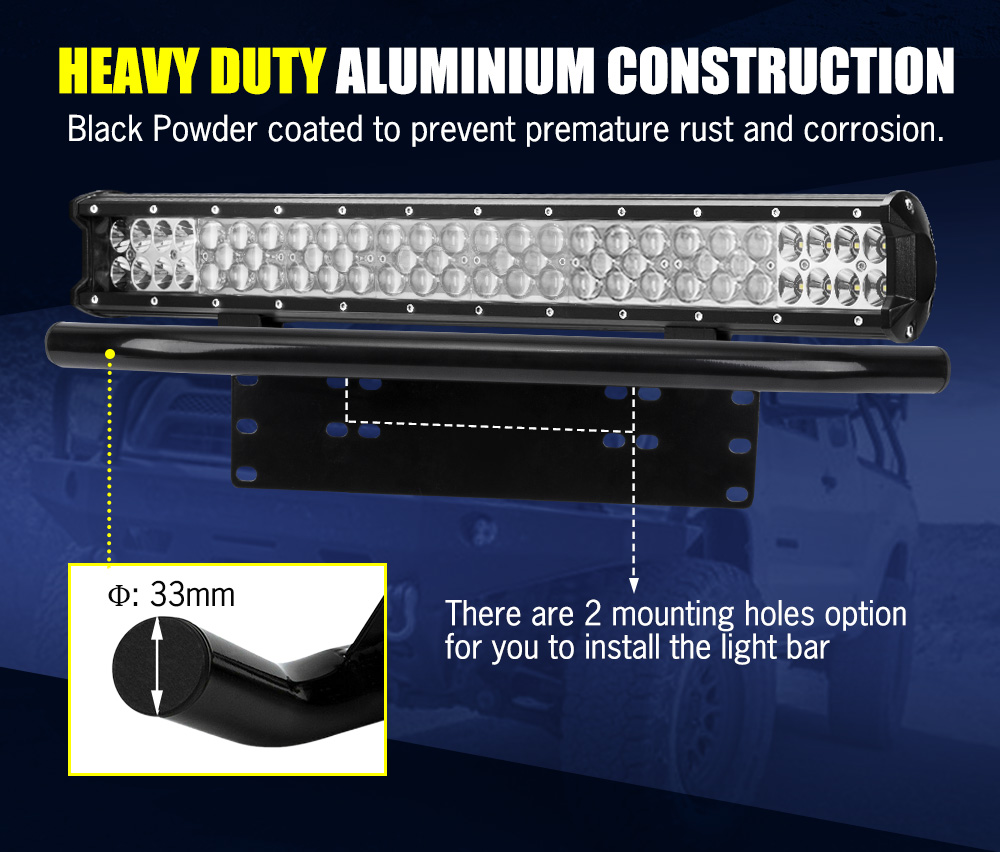

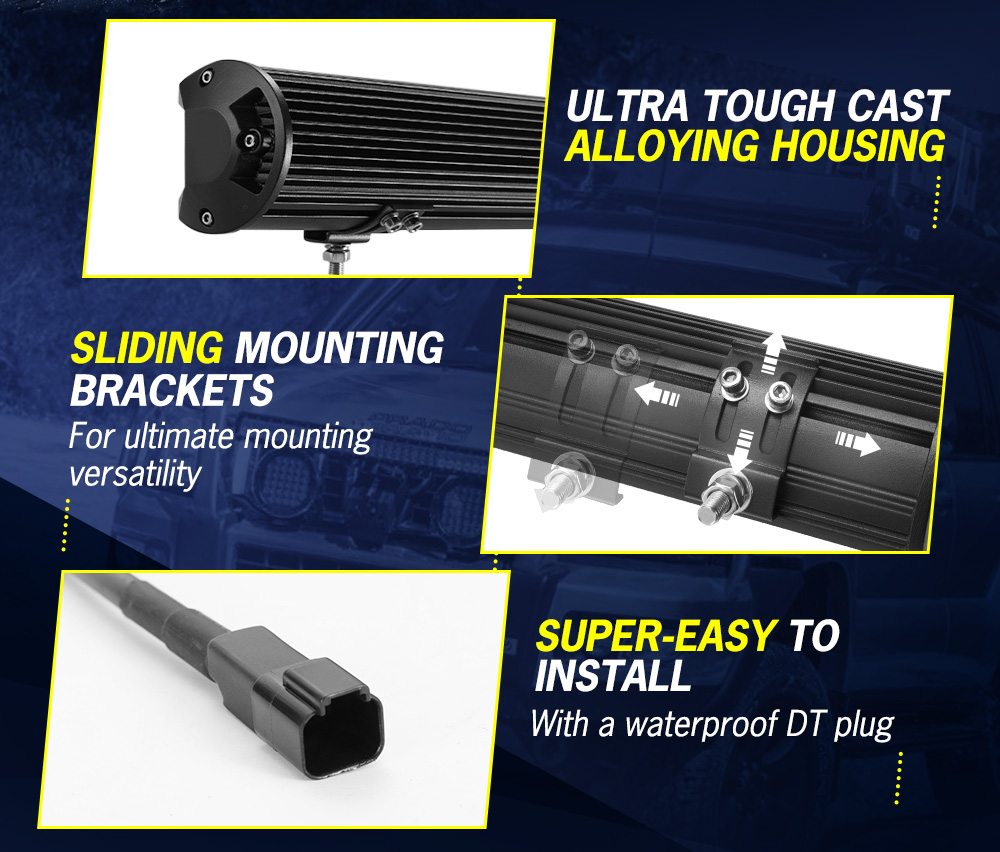

Adjustable & Durable Alu Firm Mounting Brackets.

SPECIFICATIONS

23inch LED Light Bar LED 64PCS Philips LUMILEDS LED

LUX Rating 1LUX @630M

Raw Lumen 85,000Lm

Operating Voltage 10-30V DC

IP Rating IP68

Beam Type 8hyperspot 60Flood Combo Beam (8F/40S/8F)

Colour Temperature (CCT) 6000 Kelvin

Housing Material Black Aluminium Die cast Housing

Lens PMMA

Mounting Bracket Alu Firm Bracket

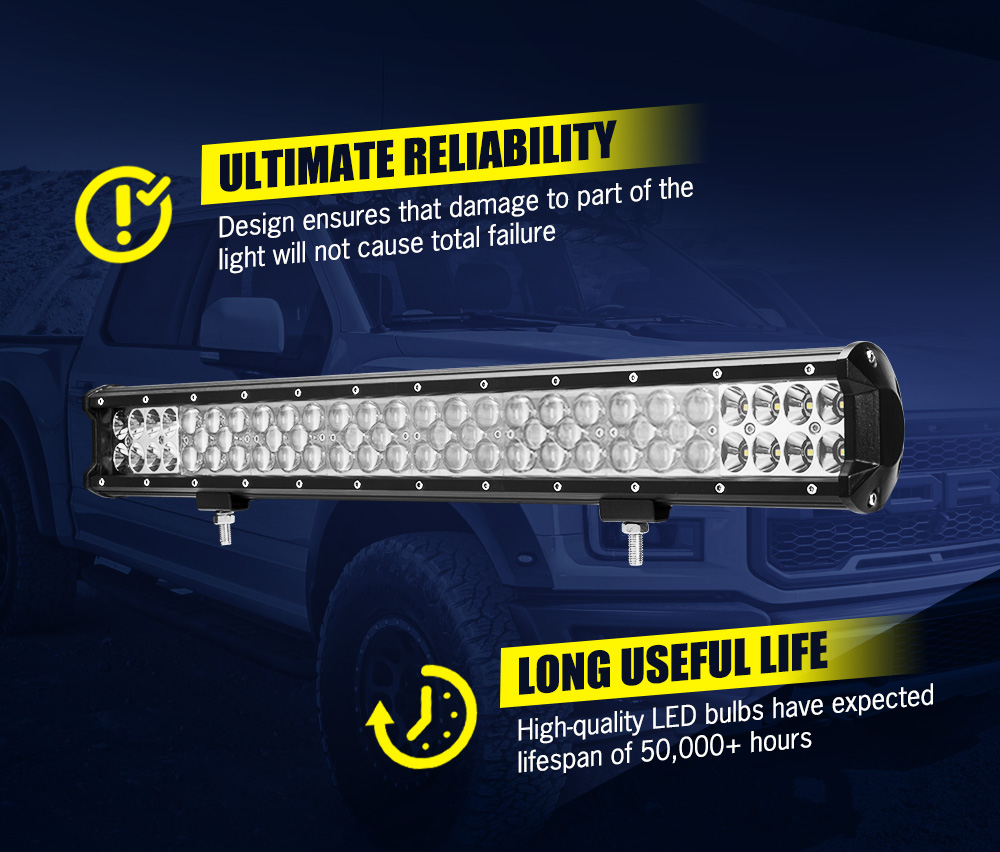

Life Span 50,000 Hours

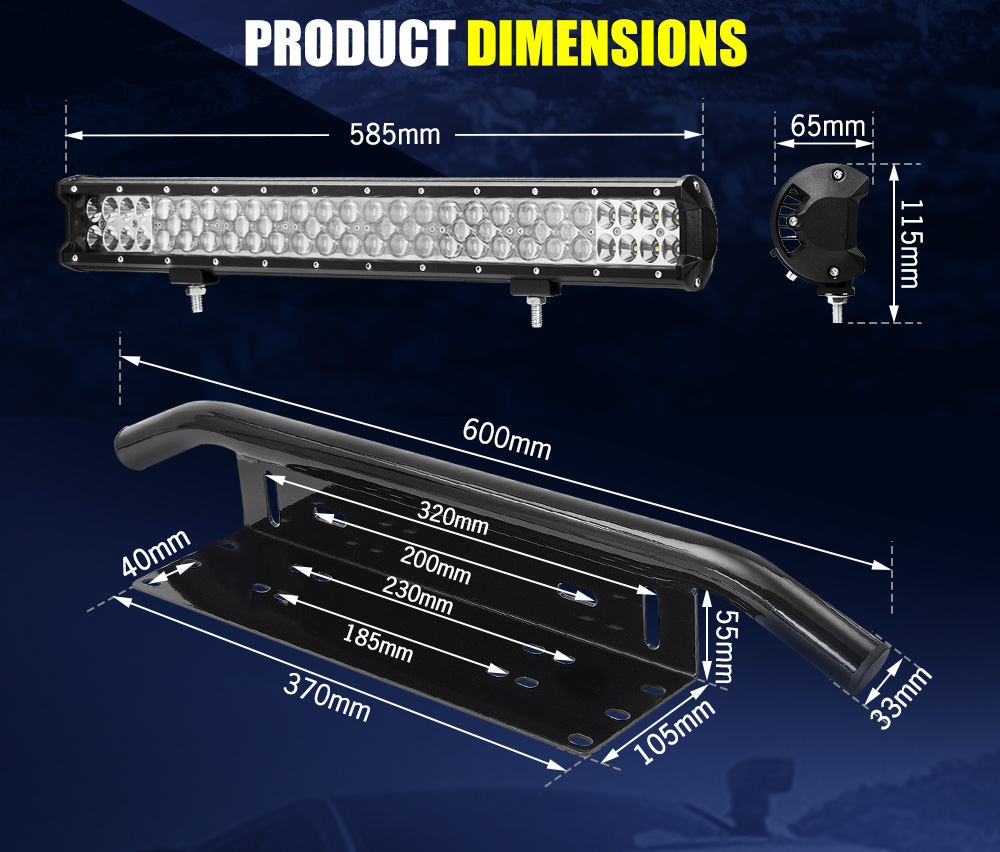

Package Size 640 x 123 x 100mm

Weight 1.94kg Approx

Operating Environment -40~+80 Celsius

Number Plate Frame Material: Aluminium

Size: 615mm x 135 x 105mm

Weight: 0.82kg

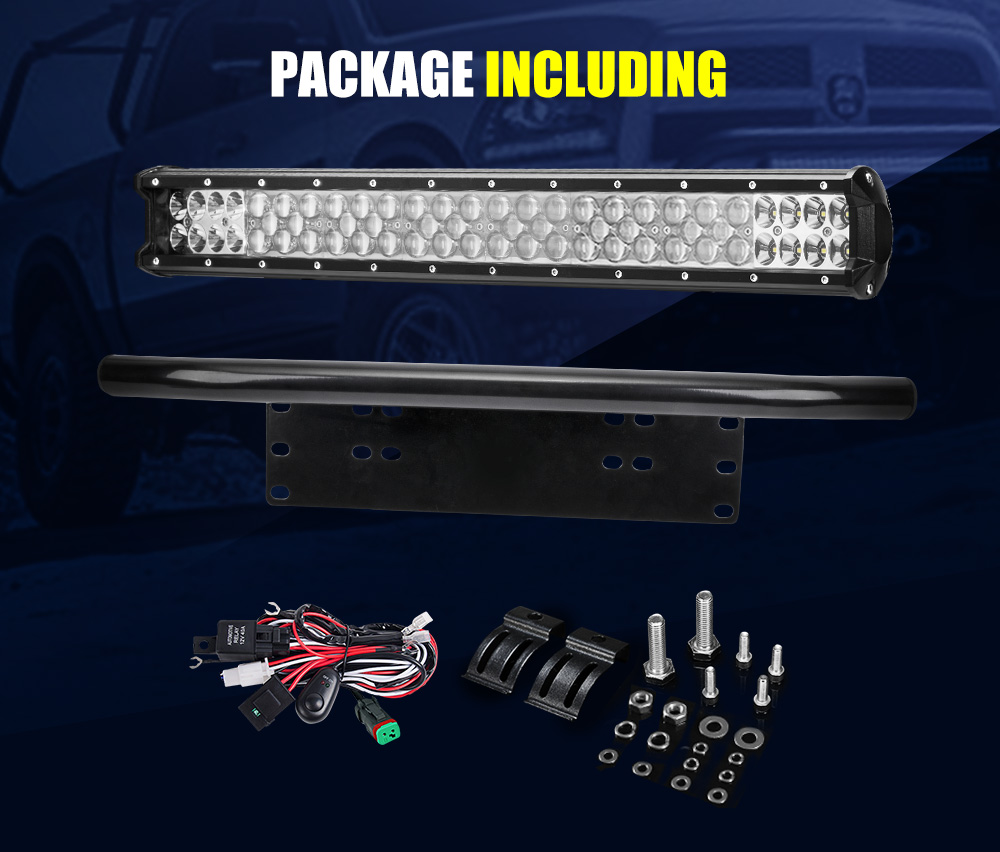

PACKAGE INCLUDES

1 x 23INCH LED Light Bar

1 x 12V DC 40A Driving Lights Wiring Loom

1 x Plate Frame

WARRANTY

3 Years Warranty

23inch LED Light Bar
LED 64PCS Philips LUMILEDS LED
LUX Rating 1LUX @630M
Raw Lumen 85,000Lm
Operating Voltage 10-30V DC
IP Rating IP68
Beam Type 8°hyperspot & 60°Flood Combo Beam (8F/40S/8F)
Colour Temperature (CCT) 6000 Kelvin
Housing Material Black Aluminium Die cast Housing
Lens PMMA
Mounting Bracket Alu Firm Bracket
Life Span 50,000 Hours
Package Size 640 x 123 x 100mm
Weight 1.94kg Approx
Operating Environment  -40~+80° Celsius
Number Plate Frame
Material: Aluminium
Size: 615mm x 135 x 105mm
Weight: 0.82kg
3 Years Warranty
